Product Description

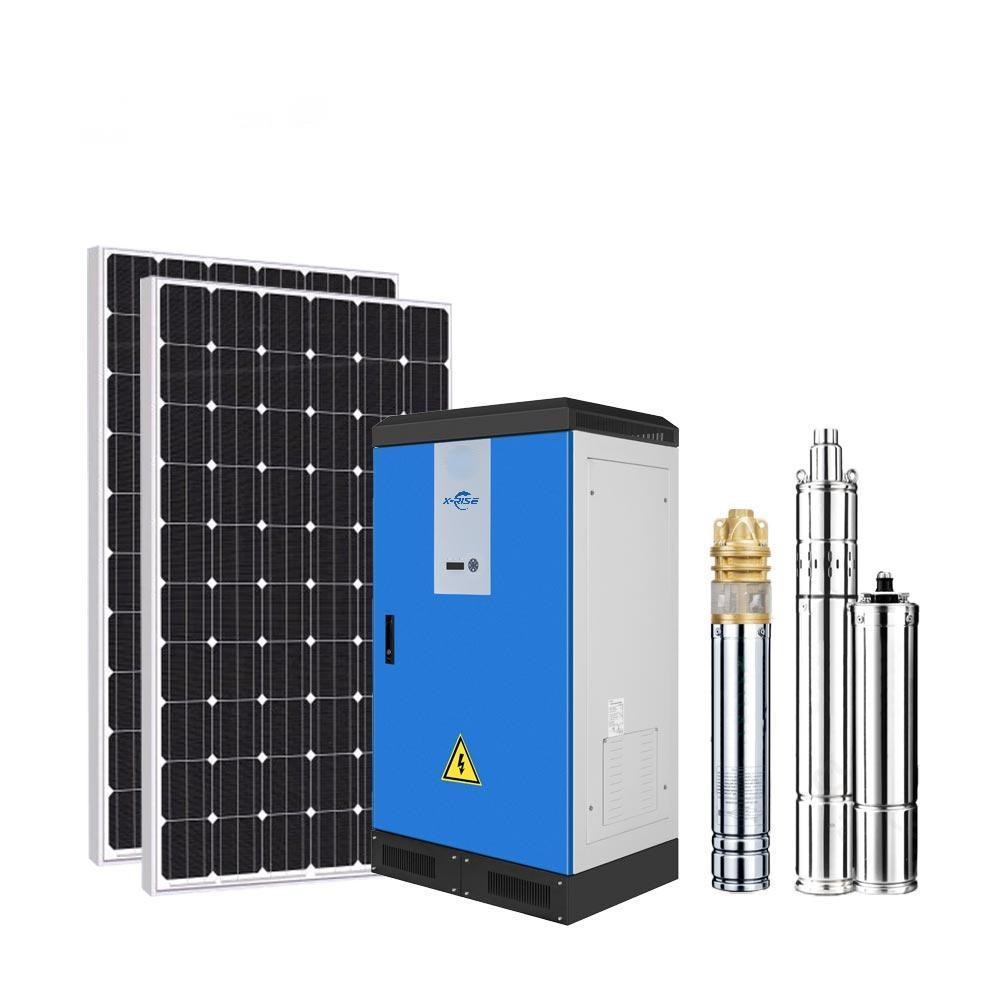

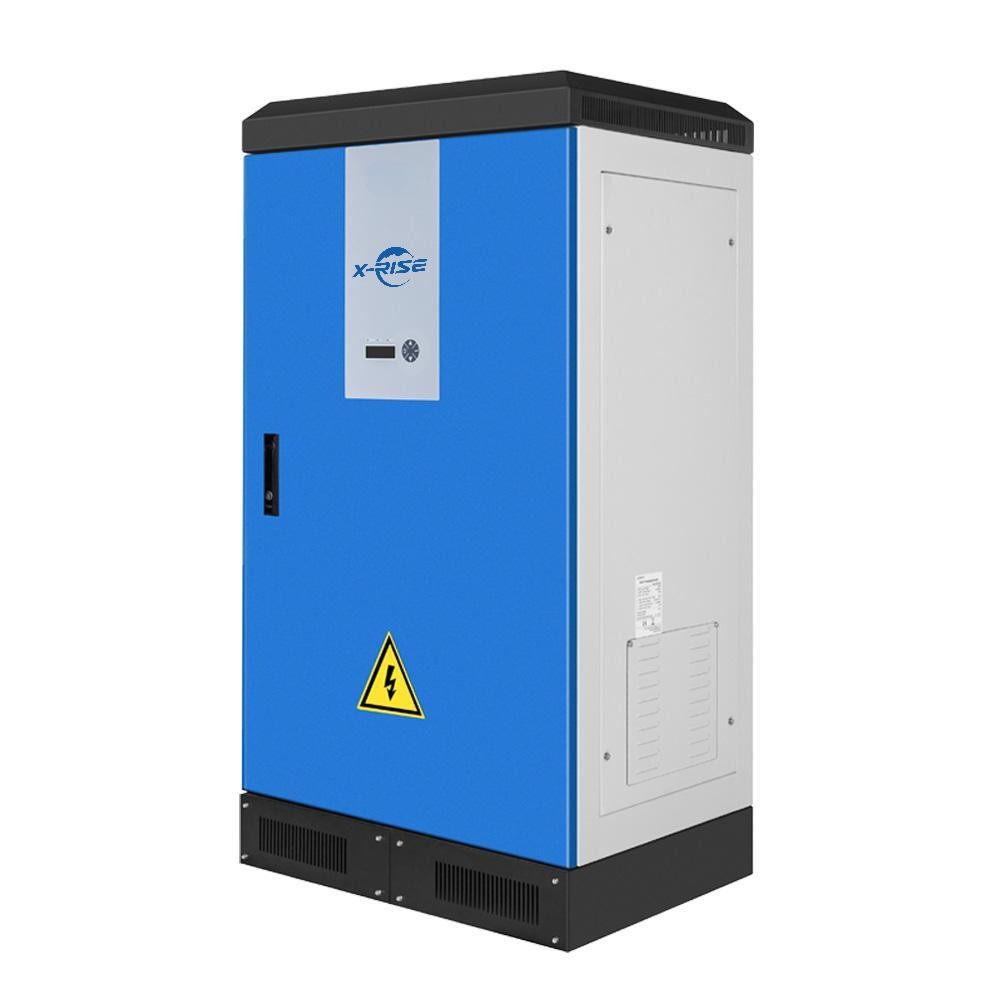

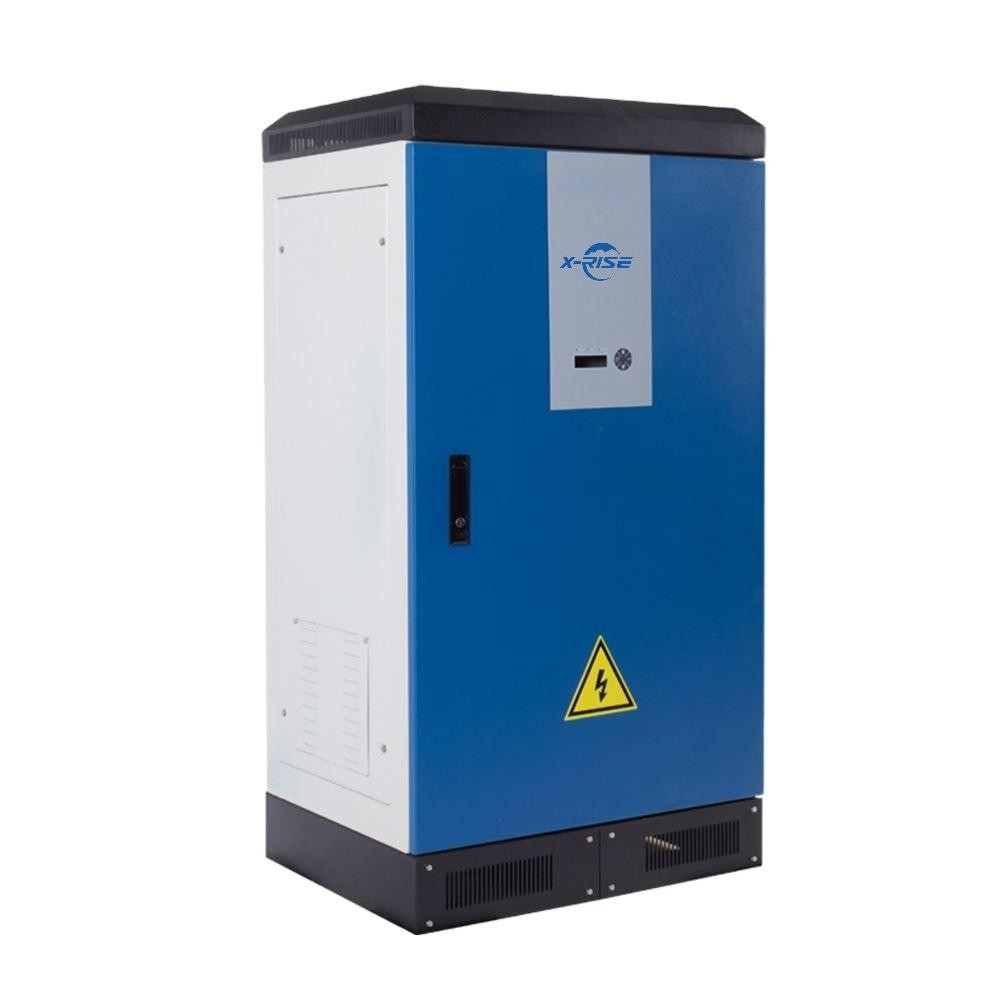

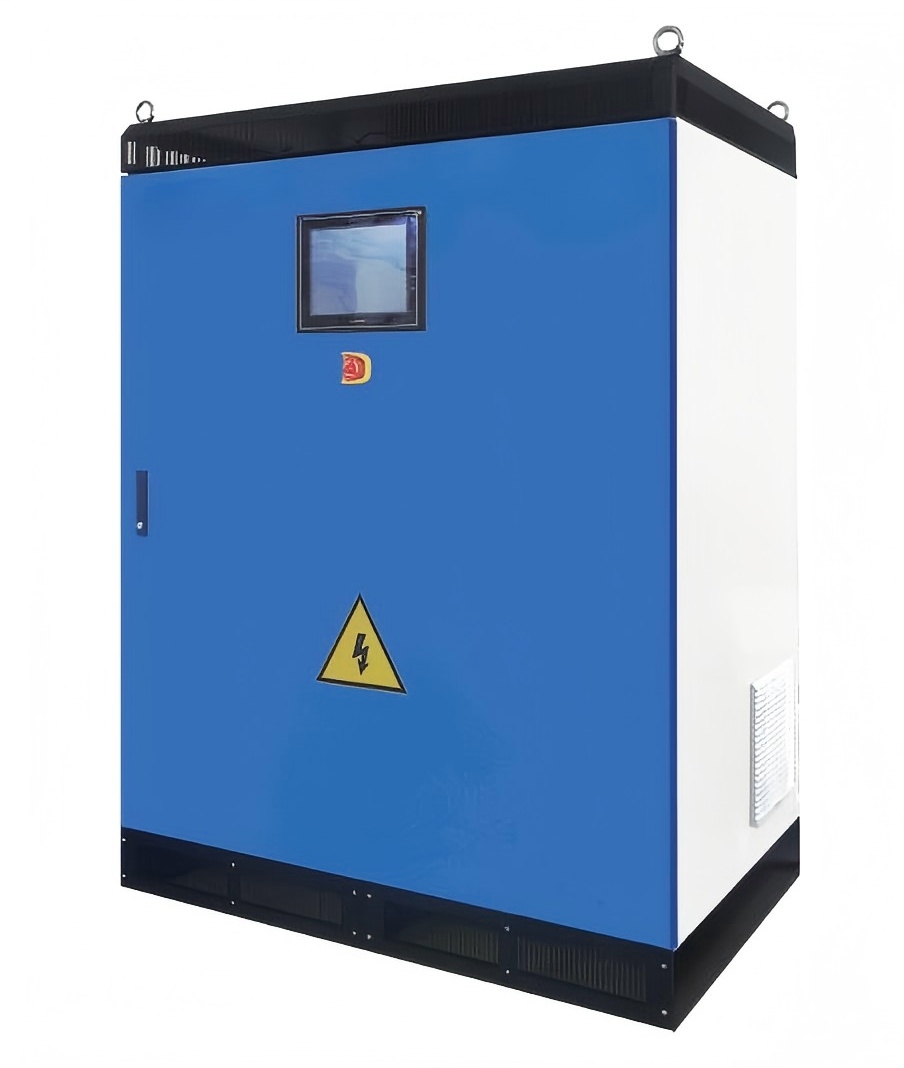

160KW Hybrid Solar Pumping Inverter Introduction
The solar pumping inverter controls and regulates the operation of the solar water lifting system, converts the direct current emitted by the solar array into alternating current, drives the pump, and adjusts the output frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking (MPPT).
AC single-phase/three-phase solar pump inverter;
Output voltage 220V~230V AC /380~460V AC;
Power of low voltage ranges from 0.37kw to 4kw;
Power of high voltage ranges from 2.2kw to 350kw.

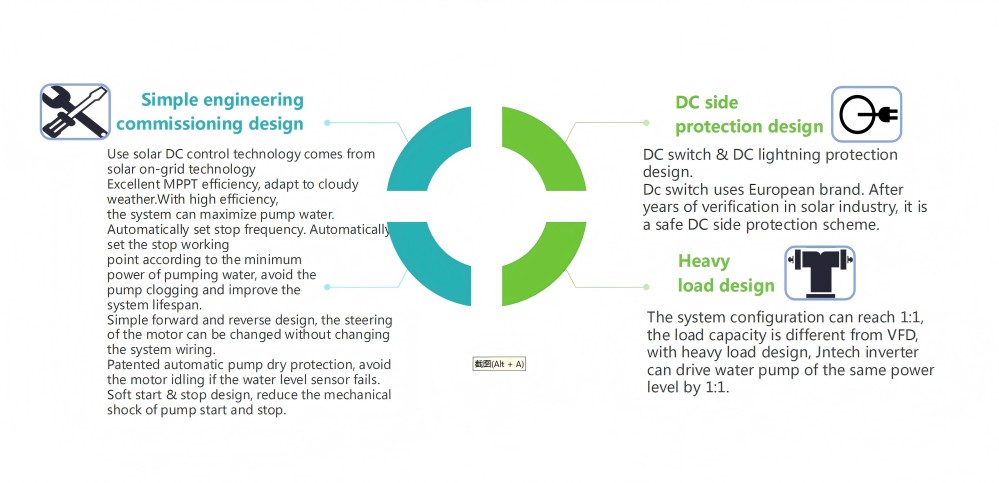

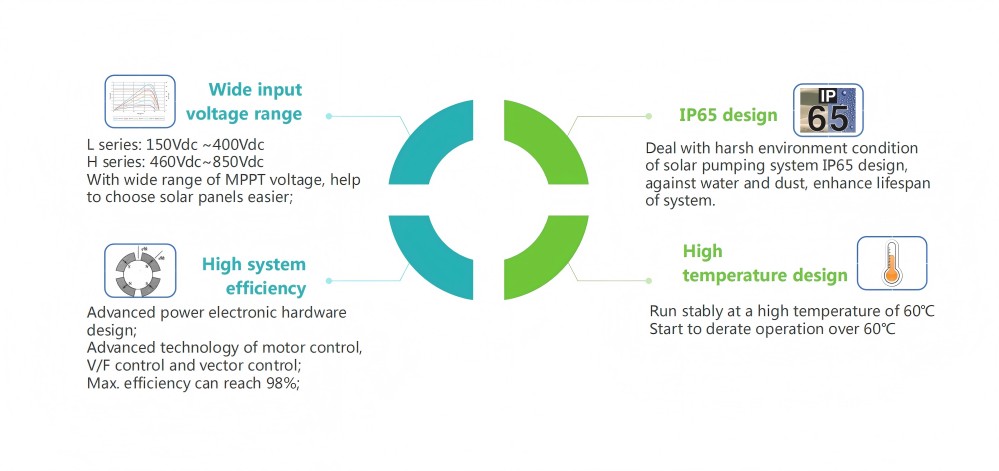

Features
Drives power-matched single/three-phase AC pump
Advanced IGBT power module
High conversion efficiency, low temperature rise, low noise, long lifespan

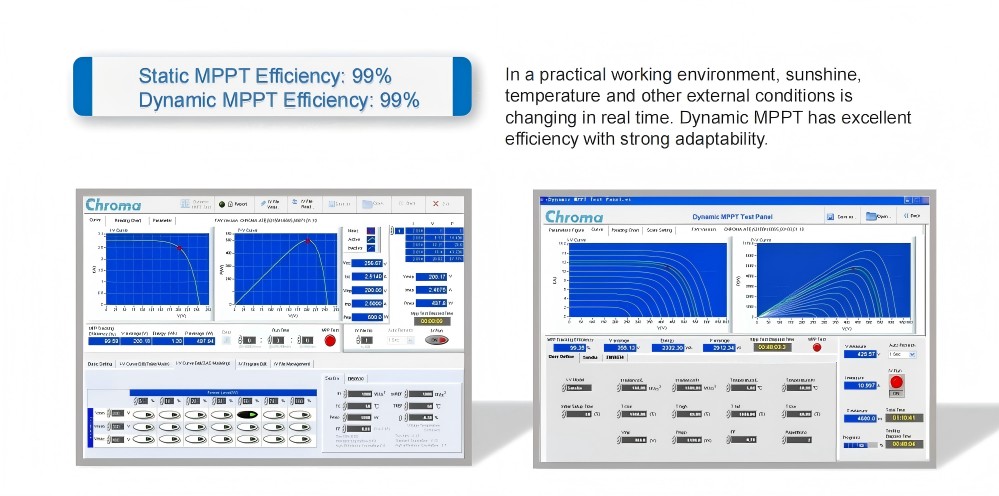

Advanced MPPT technology, 99%+ efficiency
Fully automatic operation; opera onal data can be stored for 10 years
Robust system protection, high reliability
Newly redesigned anodized aluminum case
LCD display
RS485/GPRS interface
Modular design; easy to install, operate and maintain
Utility grid/DG or photovoltaic input, automatic switching with PV priority,complementary energy usage to keep the pump running and achieve
24-hour water supply
Critical Performance Index

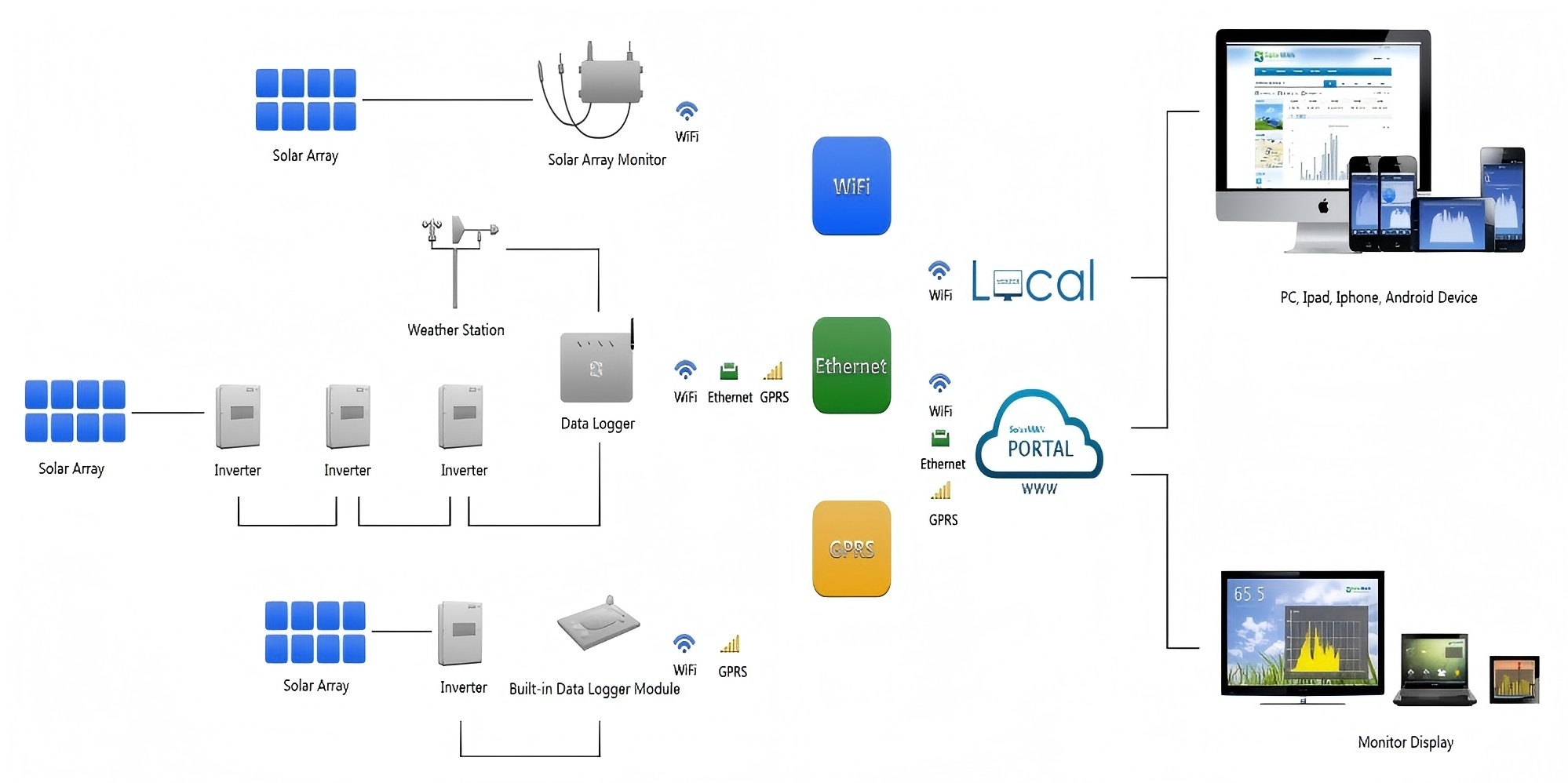

Monitoring Software
Control the solar pump inverter remotely
Manage all solar pump inverters and systems
Check system operating status at any time
Read all system information on PC, tablet, iPhone, iPad or other electronic devices
View alarm records and diagnose error codes
Analyse data to ensure system is in good working condition

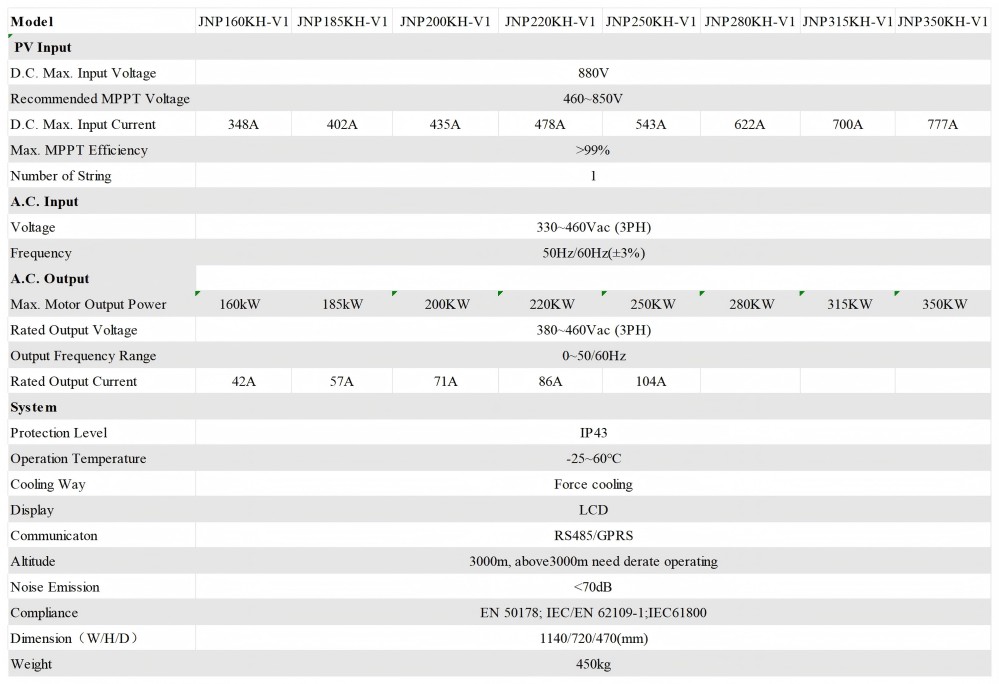

Datasheet
The XRISE team has been developing innovative energy products since 2010. We have always put our customers’ needs first, focusing on the quality of our solar pump inverters and providing customer service that’s second to none. Twelve years of hard work have paid off, with a strong global reputa on and our solar pump inverters currently in use in more than 50 countries. XRISE products have passed tests from government engineers, NGOs, UNDP, UNHCR, UNICEF, OCHA,and ICRC in Asia, Africa and the Middle East, and their specifica ons and features have set the standard for solar pumpsystem tenders in these countries.Every member of the XRISE team works hard to reward our customers’ trust and uphold our reputa on. As a company, we never stop looking for new ways to make the world greener.
