DC Solar Plastic Submersible Water Pump
This type of DC water pump adopts DC power supply technology, with low energy consumption, high energy efficiency, energy saving up to 30%; Equipped with brushless motor, stable operation and long life, noise less than 40dB, quiet and not disturbing. Support multi-voltage compatibility (12V/24V/48V), flow adjustable (500-5000L/H), to meet the needs of aquarium cycle, garden fountain, agricultural irrigation, industrial cooling and other scenarios. IP68 waterproof and dust-proof, built-in overload protection, safe and durable, compact and easy to install, intelligent temperature control and dry burn prevention, ideal for home, commercial and outdoor applications!

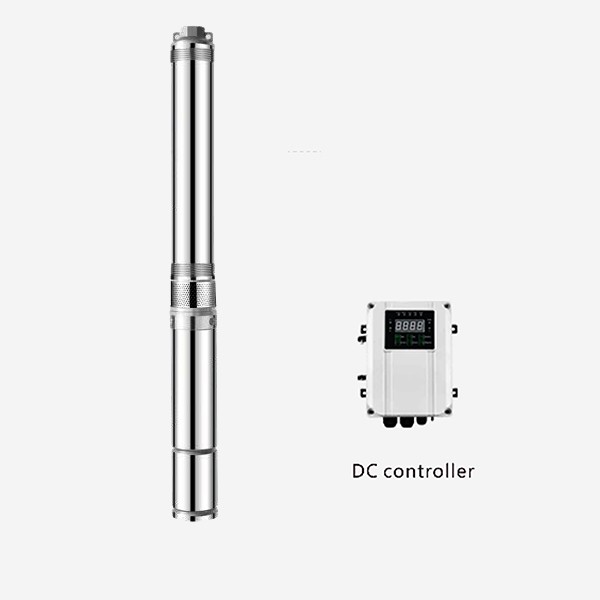

3 Inches DC Plastic Solar Submersible Pump
Core Advantage Of Solar Submerisble Pump
>Permanentmagnet DC brushless motor, efficiencyimproved by 20~30%.
>Longer use life than normal electrical AC pump motor.
> High efficiency intelligent MPPT controller makes pump start and stop working automatically.
> Overload protection,over current protection,underload protection,under voltage protection,reverseconnect protection,thermal protection,well shortage water prtection,soft start.
> Controller LED screen displays voltage, current, power,speed RPM, adjusting speed, error code.
>Controller waterproofing grade lP54.
>Ambient temperature: -15~70 °C.
Core Advantage Of DC Pump Controller
▲Efficient intelligent control: The use of frequency conversion speed regulation technology, accurately adjust the pump flow and pressure, on-demand output, avoid energy waste, comprehensive energy efficiency increased by more than 20%.
▲Wide voltage adaptive: compatible with 12V/24V/48V DC power supply, automatically identify input voltage and stabilize output, adapt to complex power environment, more flexible use.
▲Quiet and low interference: Optimized circuit design and electromagnetic shielding technology, operation without high-frequency noise, electromagnetic interference (EMI) is lower than the industry standard, suitable for scenes with high requirements for silence.
▲Multi-mode intelligent switching: Support manual adjustment, automatic constant voltage, timed start and stop and remote APP/WiFi control (optional), to meet diversified operation needs.
▲Multiple safety protection: built-in over current/over voltage/under voltage/short circuit/overheating protection module, real-time monitoring of anomalies and automatic power off, to ensure equipment and personal safety.
▲Intelligent temperature control monitoring: dynamic monitoring of motor temperature, high temperature automatic cooling, low temperature start anti-freeze protection, extend the service life of the pump.
▲Modular design: Separate structure of controller and water pump, easy maintenance and upgrade, support function expansion (such as solar power supply adaptation), to meet future needs.
▲Energy-saving algorithm optimization: Intelligent adjustment of power output based on load changes, low power consumption standby mode, comprehensive energy-saving performance is better than the traditional controller.

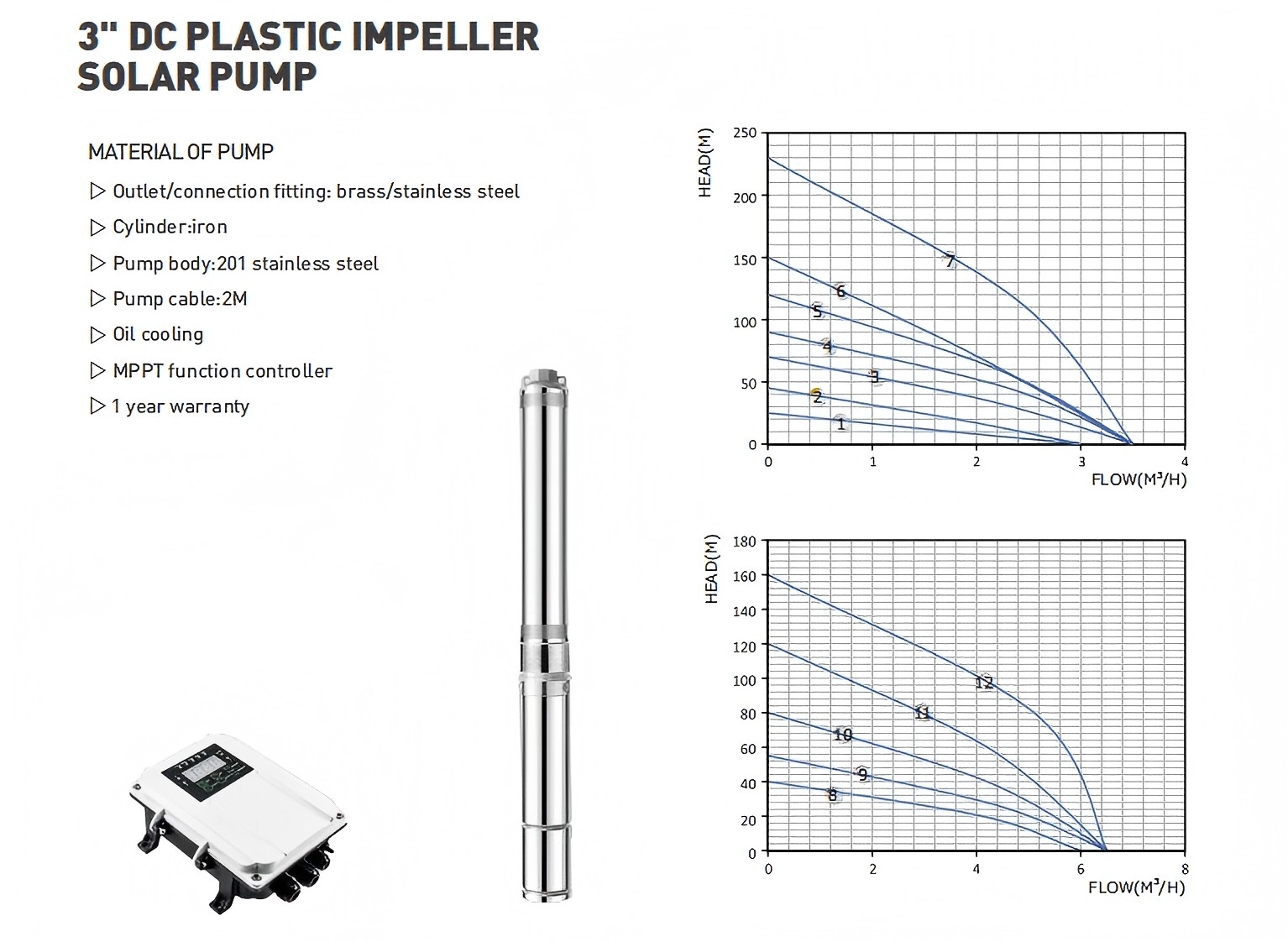

Datesheet
| ITEM | DC VOLTAGE | BEST INPUT VOLTAGE VOC | POWER | MAX FLOW | MAX HEAD | OUTLET | |
| NO. | VOLTAGE(V) | VOLTAGE(V) | (W) | (M3/H) | (M) | (inch) | |
| 1 | 3PSC3.0-30-24-300 | 24 | 11-55 | 300 | 3 | 30 | 1" |
| 2 | 3PSC3.0-45-48-400 | 48 | 45~100 | 400 | 3 | 45 | 1" |
| 3 | 3PSC3.5-70-72-600 | 72 | 60~150 | 600 | 3.5 | 70 | 1" |
| 4 | 3PSC3.5-90-96-750 | 96 | 60~200 | 750 | 3.5 | 90 | 1" |
| 5 | 3PSC3.5-120-144-1100 | 144 | 90~340 | 1100 | 3.5 | 120 | 1" |
| 6 | 3PSC3.5-150-192-1500 | 192 | 90~430 | 1500 | 3.5 | 150 | 1" |
| 7 | 3PSC3.5-230-280-2200 | 280 | 100~490 | 2200 | 3.5 | 230 | 1" |
| 8 | 3PSC6.0-40-72-600 | 72 | 60~150 | 600 | 6 | 40 | 1" |
| 9 | 3PSC6.5-55-96-750 | 96 | 60~200 | 750 | 6.5 | 55 | 1" |
| 10 | 3PSC6.5-80-144-1100 | 144 | 90~340 | 1100 | 6.5 | 80 | 1" |
| 11 | 3PSC6.5-120-192-1500 | 192 | 90~430 | 1500 | 6.5 | 120 | 1" |
| 12 | 3PSC6.5-160-280-2200 | 280 | 100~490 | 2200 | 6.5 | 160 | 1" |
Warranty Police
Solar Submersible Water Pump:
Declare warranty for deliver 100% of the rated water pumping required at maximum power conditions.Pump start pumping at 50% of' maximum power requirement, and subsequently work in variable speed with variations for power input of 50%, 60%,70%,80%, 90% with maximum results at100% power supply (at solar insolation of 900-1000W/m3) . We guarantee the curve performance of each pump and give warranty of Submersible pump and Submersible motor for (01)Years.
