DC Solar Swimming Pool Water Pump
This type of DC water pump adopts DC power supply technology, with low energy consumption, high energy efficiency, energy saving up to 30%; Equipped with brushless motor, stable operation and long life, noise less than 40dB, quiet and not disturbing. Support multi-voltage compatibility (12V/24V/48V), flow adjustable (500-5000L/H), to meet the needs of aquarium cycle, garden fountain, agricultural irrigation, industrial cooling and other scenarios. IP68 waterproof and dust-proof, built-in overload protection, safe and durable, compact and easy to install, intelligent temperature control and dry burn prevention, swimming pool outdoor applications!

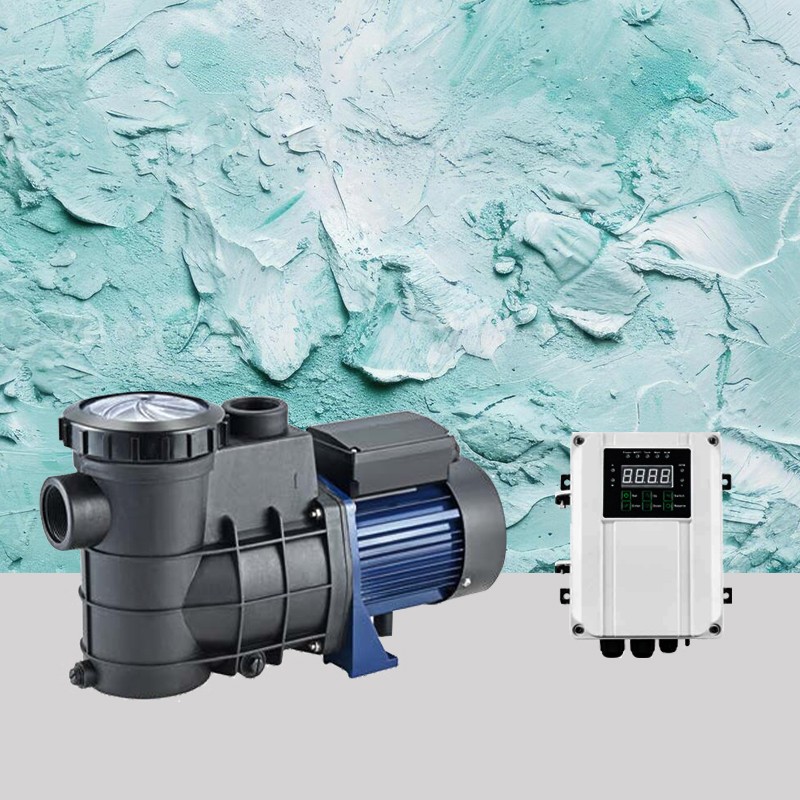

PSP14-13-72-600 DC Solar Swimming Pool Pump
Core Advantage Of Solar Swimming Pool Pump
>Permanentmagnet DC brushless motor, efficiencyimproved by 20~30%.
>Longer use life than normal electrical AC pump motor.
> High efficiency intelligent MPPT controller makes pump start and stop working automatically.
> Overload protection,over current protection,underload protection,under voltage protection,reverseconnect protection,thermal protection,well shortage water prtection,soft start.
> Controller LED screen displays voltage, current, power,speed RPM, adjusting speed, error code.
>Controller waterproofing grade lP54.
>Ambient temperature: -15~70 °C.
Core Advantage Of DC Pump Controller
▅Efficient intelligent control: The use of frequency conversion speed regulation technology, accurately adjust the pump flow and pressure, on-demand output, avoid energy waste, comprehensive energy efficiency increased by more than 20%.
▅Wide voltage adaptive: compatible with 12V/24V/48V DC power supply, automatically identify input voltage and stabilize output, adapt to complex power environment, more flexible use.
▅Quiet and low interference: Optimized circuit design and electromagnetic shielding technology, operation without high-frequency noise, electromagnetic interference (EMI) is lower than the industry standard, suitable for scenes with high requirements for silence.
▅Multi-mode intelligent switching: Support manual adjustment, automatic constant voltage, timed start and stop and remote APP/WiFi control (optional), to meet diversified operation needs.
▅Multiple safety protection: built-in over current/over voltage/under voltage/short circuit/overheating protection module, real-time monitoring of anomalies and automatic power off, to ensure equipment and personal safety.
▅Intelligent temperature control monitoring: dynamic monitoring of motor temperature, high temperature automatic cooling, low temperature start anti-freeze protection, extend the service life of the pump.
▅Modular design: Separate structure of controller and water pump, easy maintenance and upgrade, support function expansion (such as solar power supply adaptation), to meet future needs.
▅Energy-saving algorithm optimization: Intelligent adjustment of power output based on load changes, low power consumption standby mode, comprehensive energy-saving performance is better than the traditional controller.
Datesheet
| ITEM | DC VOLTAGE | BEST INPUT VOLTAGE VOC | POWER | MAX FLOW | MAX HEAD | MAX SUCT | OUTLET | |
| NO. | VOLTAGE(V) | VOLTAGE(V) | (W) | (M3/H) | (M) | (M) | (inch) | |
| 1 | PSP6-9-24-200 | 24 | 11~55 | 200 | 6 | 9 | 8 | ○50 |
| 1 | PSP10-10-24-370 | 24 | 11~55 | 370 | 10 | 10 | 8 | ○51 |
| 2 | PSP14-13-72-600 | 72 | 60~150 | 600 | 14 | 13 | 8 | ○52 |
| 3 | PSP16-14-96-750 | 96 | 60~200 | 750 | 16 | 14 | 8 | ○53 |
| 4 | PSP22-13-144-1100 | 144 | 90~340 | 1100 | 22 | 13 | 8 | ○54 |
| 5 | PSP25-14-192-150 | 192 | 90~430 | 1500 | 25 | 14 | 8 | ○55 |
| 5 | PSP36-18-280-2200 | 280 | 100~490 | 2200 | 36 | 18 | 8 | ○56 |
Warranty Police
Solar Submersible pump:
Declare warranty for deliver 100% of the rated water pumping required at maximum power conditions.Pump start pumping at 50% of' maximum power requirement, and subsequently work in variable speed with variations for power input of 50%, 60%,70%,80%, 90% with maximum results at100% power supply (at solar insolation of 900-1000W/m3) . We guarantee the curve performance of each pump and give warranty of Submersible pump and Submersible motor for (01)Years.
