Description
Key Features
High Charging/Discharging Capacity
With a remarkable maximum charging and discharging current of 290A, the Deye SUN-12/14/16K-SG01LP1-EU is well-suited to manage substantial energy loads.
This feature makes the inverter highly adaptable for a diverse range of applications, from residential homes to commercial establishments.

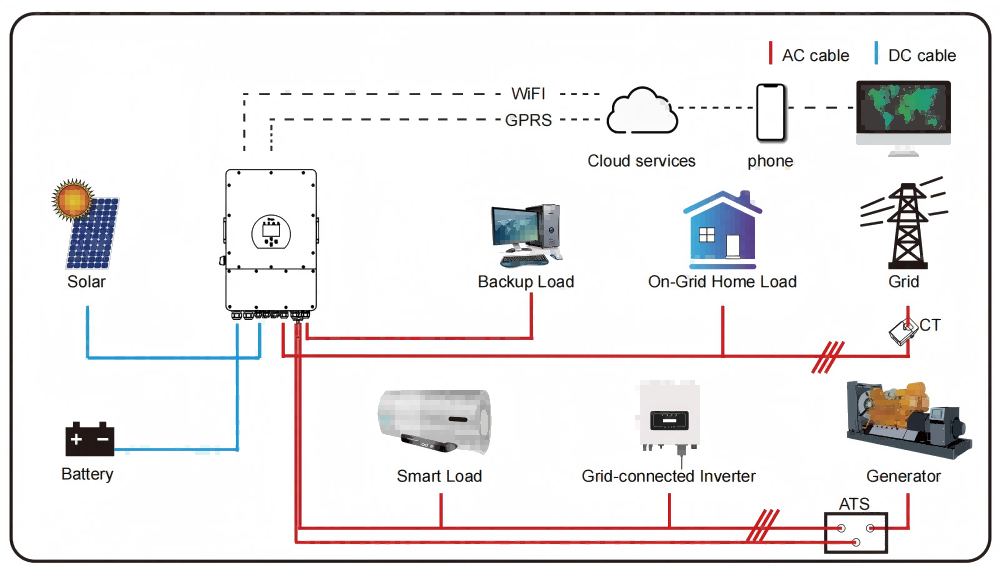

Generator Compatibility
The inverter’s capability to store energy from diesel generators ensures an uninterrupted power supply even in remote or off-grid locations. This makes it an excellent
choice for areas with limited grid access or unreliable power sources.
Parallel Operation
Supporting up to 16 parallel units for both on-grid and off-grid operations, the inverter offers immense scalability. This flexibility simplifies the process of expanding
energy systems as demand grows, making it highly advantageous for commercial setups and large residential complexes.
Multiple Battery Support
The inverter is compatible with various parallel-connected batteries, including lead-acid and lithium-ion types. This compatibility enhances the overall energy storage
capacity, allowing for more extensive and efficient energy management.
Retrofitting Capability
It can easily integrate with existing solar systems using AC coupling, which is ideal for updating and enhancing older solar installations.
Customizable Charging/Discharging
Featuring the ability to set up 6 different time periods for battery charging and discharging, users can optimize their energy usage according to availability, peak times,
and cost considerations.
Intuitive Interface
Equipped with a colorful touch LCD, the inverter offers an easy-to-use interface for monitoring and control, ensuring a user-friendly experience.
Rugged Design
With an IP65 protection rating, the inverter is dust-tight and protected against water jets, making it suitable for various environmental conditions. Its robust design
guarantees prolonged durability and reliability.
Safety and Compliance
The inverter meets stringent safety and EMC standards such as IEC/EN 61000-6-1/2/3/4 and IEC/EN 62109-1/2, ensuring reliable and safe operation across different
regions and applications.
Technical Specifications
Models: SUN-12K-SG01LP1-EU, SUN-14K-SG01LP1-EU, SUN-16K-SG01LP1-EU
Battery Type: Compatible with both lead-acid and lithium-ion batteries
Battery Voltage Range: 40-60V
Charging Strategy: Self-adaption to BMS (Battery Management System)
Max. Charging/Discharging Current: Up to 290A
Number of Battery Inputs: 2
PV Input Data:
Max. PV Input Power: SUN-12K (15600W), SUN-14K (18200W), SUN-16K (20800W)
Max. PV Input Voltage: 500V
MPPT Voltage Range: 150-425V
AC Input/Output Data:
Rated AC Input/Output Voltage: 220/230V
Power Factor Adjustment: 0.8 leading to 0.8 lagging
Max. AC Input/Output Current: Up to 80A
Max. Continuous AC Passthrough (grid to load): 2 times rated power for 10 seconds
Efficiency:
Max. Efficiency: 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: >99%
Total Current Harmonic Distortion (THDi): <3% of nominal power
Protection Mechanisms: Includes integrated DC polarity reverse connection protection, AC output overcurrent protection, AC output overvoltage protection,
AC output short circuit protection, thermal protection, and more.
Operating Conditions:
Temperature Range: -40 to +60°C (derating above 45°C)
Humidity: 0-100%
Altitude: Up to 2000m
Noise Level: <50 dB
Cooling: Intelligent air cooling
Physical:
Cabinet Size: 464×763×282 mm (excluding connectors and brackets)
Weight: 52 kg
Warranty: 5 years, extendable to 10 years depending on installation site
Connectivity
Monitor via GPRS/WIFI/Bluetooth/4G/LAN (optional)
Communication Interfaces: RS485/RS232/CAN
Standards and Certifications
Safety/EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2
Grid Regulations: IEC 61727, IEC 62116, AS 4777.2, NRS 097

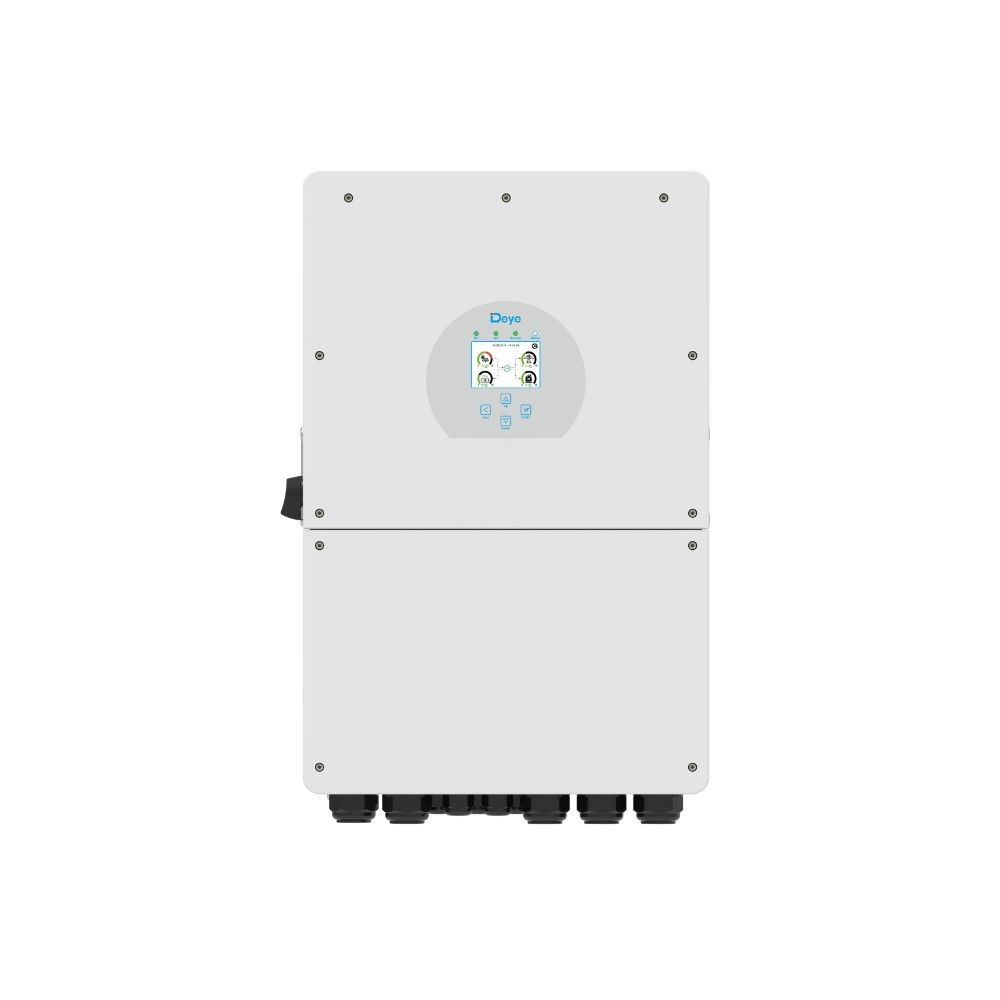

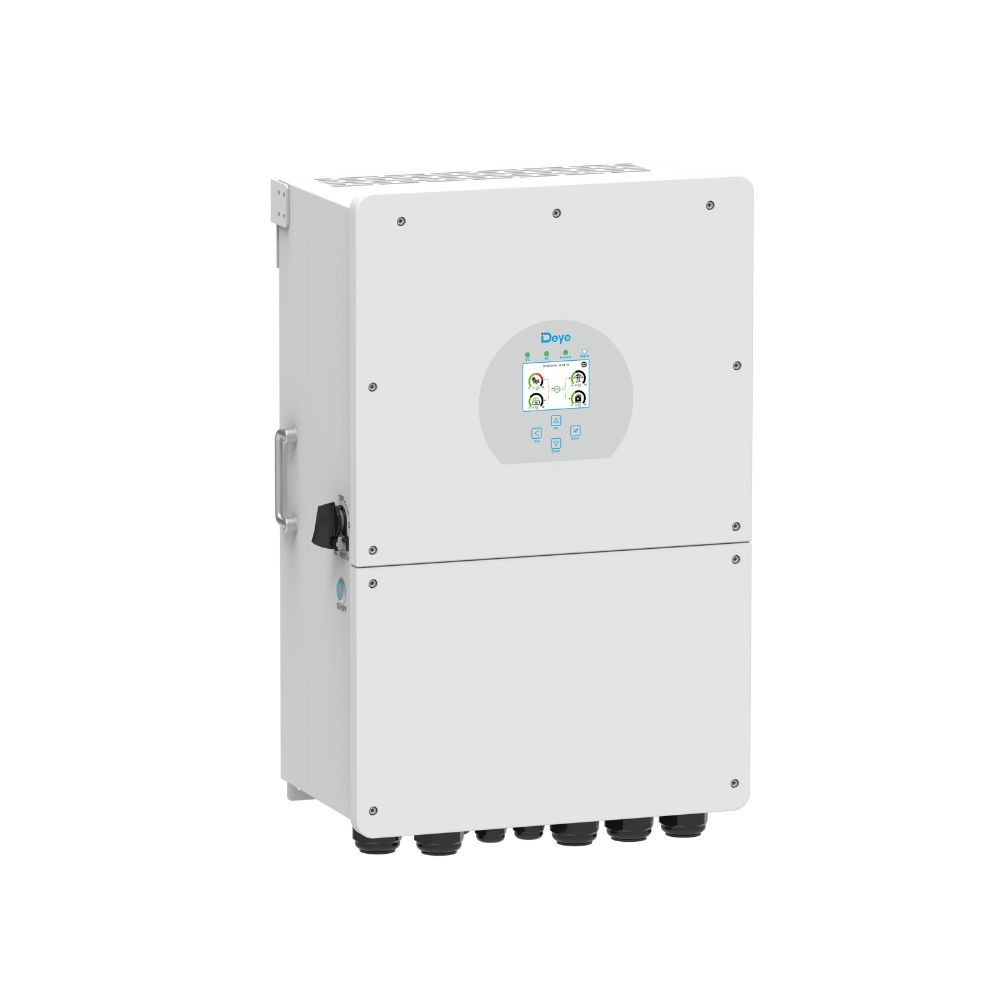

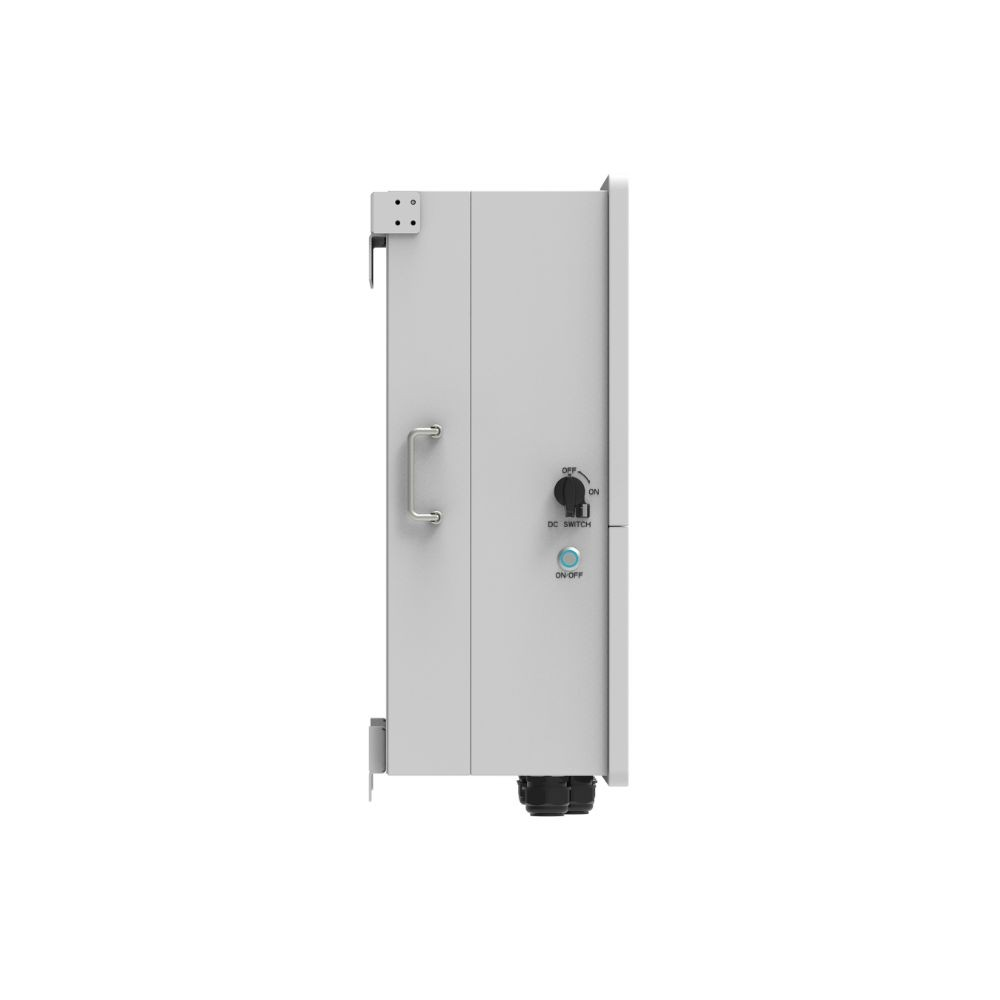

The Deye SUN-12/14/16K-SG01LP1-EU hybrid inverter is your ideal partner for efficient and reliable energy management. Designed to meet the demanding requirements
of modern energy systems, it offers unmatched performance and flexibility to ensure you make the most of your solar energy investments.
