AC/DC Solar Screw Submersible Water Pump
This type of DC water pump adopts DC power supply technology, with low energy consumption, high energy efficiency, energy saving up to 30%; Equipped with brushless motor, stable operation and long life, noise less than 40dB, quiet and not disturbing. Support multi-voltage compatibility (12V/24V/48V), flow adjustable (500-5000L/H), to meet the needs of aquarium cycle, garden fountain, agricultural irrigation, industrial cooling and other scenarios. IP68 waterproof and dust-proof, built-in overload protection, safe and durable, compact and easy to install, intelligent temperature control and dry burn prevention, ideal for home, commercial and outdoor applications!
AC/DC Solar Submersible Water Pump

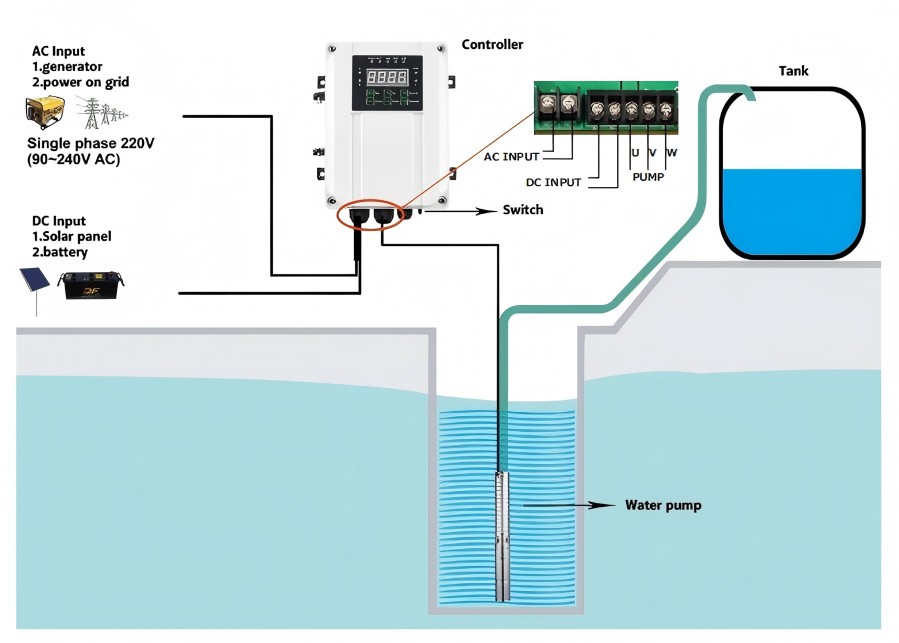

●Support single phase 220VAC 50/60Hz (90-240Vac) electricity/generator input and solar Dc power input, can realize AC or DC input switching by operating a external knife switch.
●Permanent magnet DC brushless motor, efficiency improved by 20-30%.
●Longerservice life than normal electrical AC pump motor.
●High efficiency intelligent MPpT controller makes pump start and stop working automatically.
●Overload protection,over current protection,underload protection,under voltage protection,reverseconnect protection,thermal protection,well shortage water protection,soft start.
●Controller LED screen displays voltage, current, power, speed RPM, adjusting speed, error code.
●Controller waterproofing grade lP54.
●Ambient temperature: -15-70 °C.

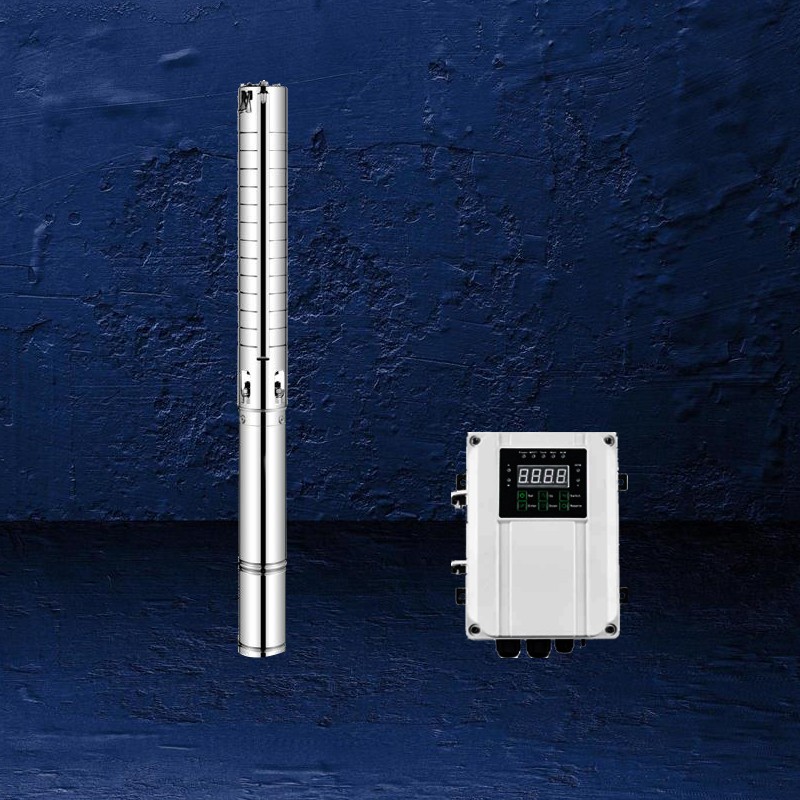

3 Inch AC/DC SS Imepller Solar Sumersible Pump
Core Advantage Of Solar Submerisble Pump
>Permanentmagnet DC brushless motor, efficiencyimproved by 20~30%.
>Longer use life than normal electrical AC pump motor.
> High efficiency intelligent MPPT controller makes pump start and stop working automatically.
> Overload protection,over current protection,underload protection,under voltage protection,reverseconnect protection,thermal protection,well shortage water prtection,soft start.
> Controller LED screen displays voltage, current, power,speed RPM, adjusting speed, error code.
>Controller waterproofing grade lP54.
>Ambient temperature: -15~70 °C.
Core Advantage Of DC Pump Controller
▅Efficient intelligent control: The use of frequency conversion speed regulation technology, accurately adjust the pump flow and pressure, on-demand output, avoid energy waste, comprehensive energy efficiency increased by more than 20%.
▅Wide voltage adaptive: compatible with 12V/24V/48V DC power supply, automatically identify input voltage and stabilize output, adapt to complex power environment, more flexible use.
▅Quiet and low interference: Optimized circuit design and electromagnetic shielding technology, operation without high-frequency noise, electromagnetic interference (EMI) is lower than the industry standard, suitable for scenes with high requirements for silence.
▅Multi-mode intelligent switching: Support manual adjustment, automatic constant voltage, timed start and stop and remote APP/WiFi control (optional), to meet diversified operation needs.
▅Multiple safety protection: built-in over current/over voltage/under voltage/short circuit/overheating protection module, real-time monitoring of anomalies and automatic power off, to ensure equipment and personal safety.
▅Intelligent temperature control monitoring: dynamic monitoring of motor temperature, high temperature automatic cooling, low temperature start anti-freeze protection, extend the service life of the pump.
▅Modular design: Separate structure of controller and water pump, easy maintenance and upgrade, support function expansion (such as solar power supply adaptation), to meet future needs.
▅Energy-saving algorithm optimization: Intelligent adjustment of power output based on load changes, low power consumption standby mode, comprehensive energy-saving performance is better than the traditional controller.

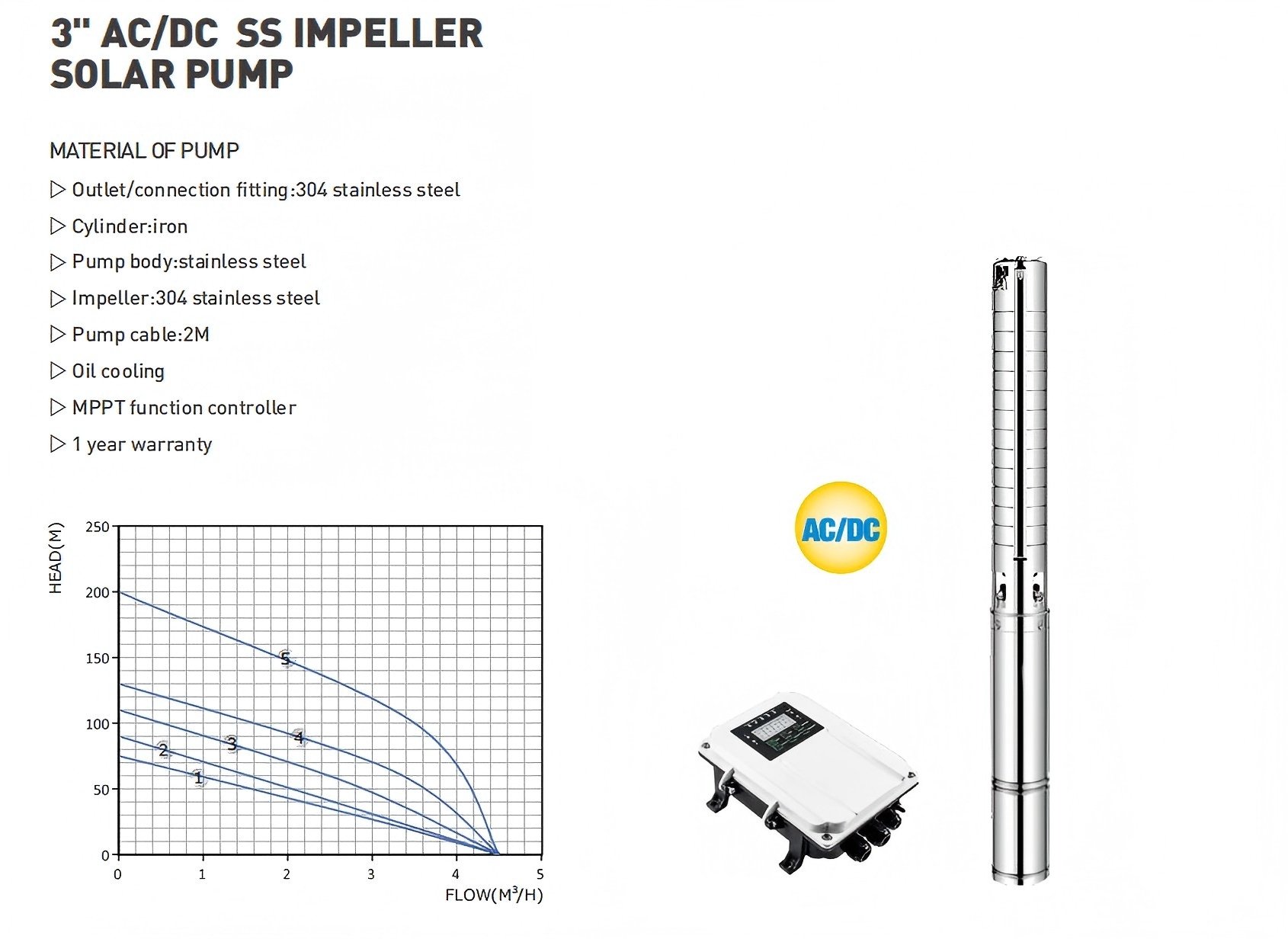

Datasheet
| ITEM | DC VOLTAGE | BEST INPUT VOLTAGE VOC | POWER | MAX FLOW | MAX HEAD | OUTLET | |
| NO. | VOLTAGE(V) | VOLTAGE(V) | (W) | (M3/H) | (M) | (inch) | |
| 1 | 3PPSS4.5-75-72-600-H | 72 | 60~150 | 600 | 4.5 | 90 | 1.25" |
| 2 | 3PPSS4.5-90-96-750-H | 96 | 60~200 | 750 | 4.5 | 90 | 1.25" |
| 3 | 3PPSS4.5-110-144-1100-H | 144 | 90~340 | 1100 | 4.5 | 110 | 1.25" |
| 4 | 3PPSS4.5-130-192-1500-H | 192 | 90~430 | 1500 | 4.5 | 130 | 1.25" |
| 5 | 3PPSS4.5-200-280-2200-H | 280 | 100~490 | 2200 | 4.5 | 200 | 1.25" |
Warranty Police
Solar Submersible pump:
Declare warranty for deliver 100% of the rated water pumping required at maximum power conditions.Pump start pumping at 50% of' maximum power requirement, and subsequently work in variable speed with variations for power input of 50%, 60%,70%,80%, 90% with maximum results at100% power supply (at solar insolation of 900-1000W/m3) . We guarantee the curve performance of each pump and give warranty of Submersible pump and Submersible motor for (01)Years.
