Solar Pump Inverter Introduction And IP65 IP20 Difference

What is Solar Pumping Inverter?

The solar pumping inverter controls and regulates the operation of the photovoltaic water lifting system, converts the direct current emitted by the photovoltaic array into alternating current, drives the pump, and adjusts the output frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking (MPPT).

AC single-phase/three-phase solar pump inverter;

Output voltage 220V~230V AC /380~460V AC;

Power of low voltage ranges from 0.37kw to 4kw;

Power of high voltage ranges from 2.2kw to 132kw.

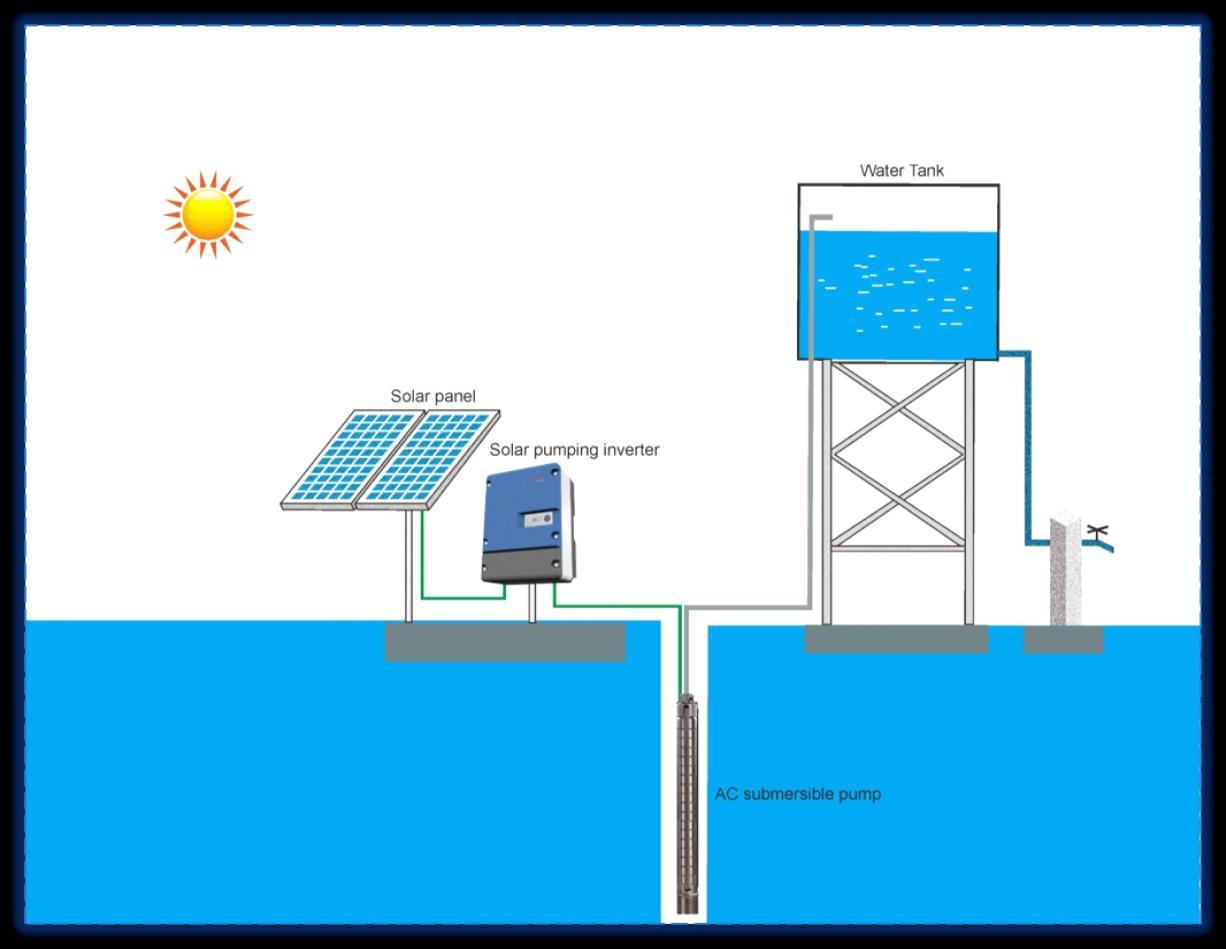

Solar Pumping System Principleimage.png


Xrise solar pumping system consists of solar panels, solar pump inverter, AC pump and water storage device.Solar pump inverter converts the DC power produced by solar panel into AC power to drive the pump work, a microprocessor inside inverter continuously monitors available energy levels and adjust pump frequency for achieving max use of solar energy. Meanwhile, AC input module or AC power pack can be added in, which allow PV, state grid, DG, multi-sources work as complementary or by-pass, to achieve system working 24 hours per day!

System Features

Reliable solution for agricultural irrigation, daily water, or desert control in water-deficient areas without electricty

Wide application with all kinds of PV modules and three- and one-phase AC pumps

IP 65 for outdoor application

Max. operating temperature of 60℃ / 140℉

GPRS remote monitoring for real-time opera on status and on/off control

Excellent performance during cloudy weather, with 5% more water output compared to the competition

ROI of less than 2 years compared to diesel generator

Fully automatic unatiended operation with perfect protection functions for a lifespan of 25 years

2-year warranty for complete system; 10 years for PV modules

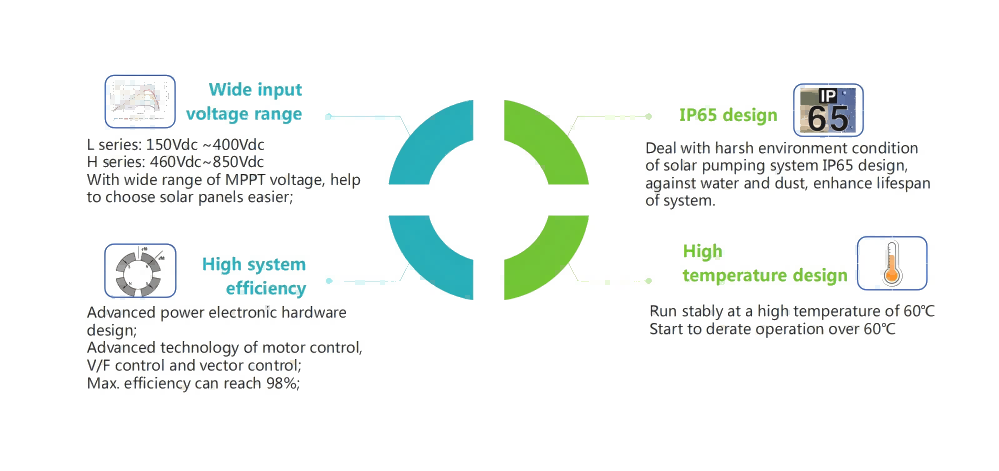

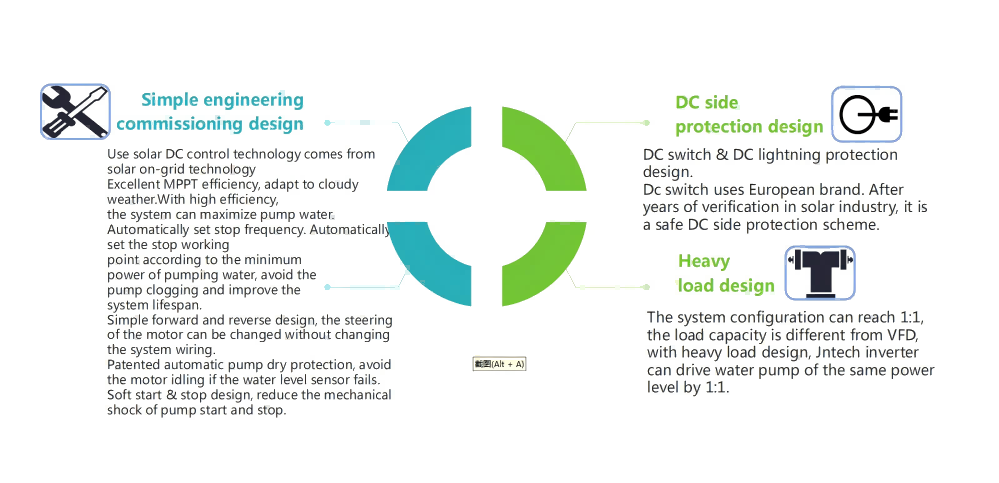

XRISE Solar Pumping Inverter Features

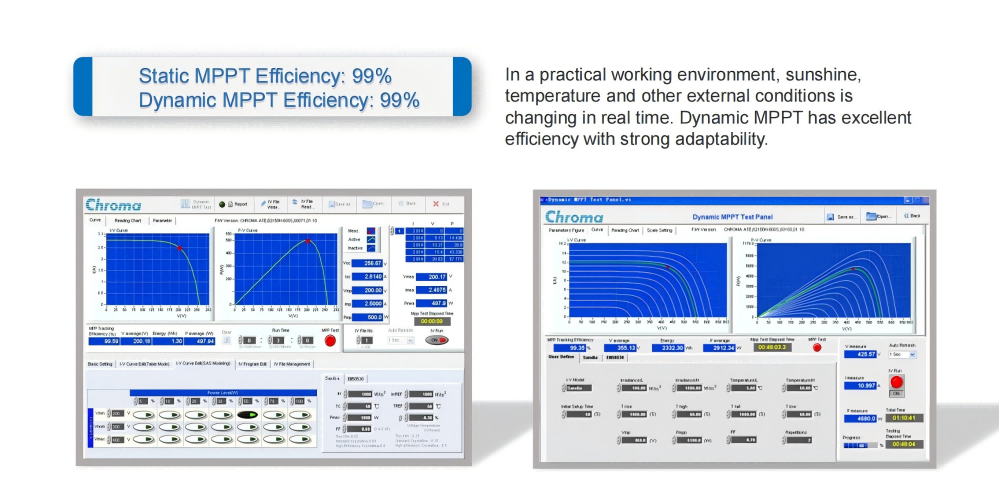

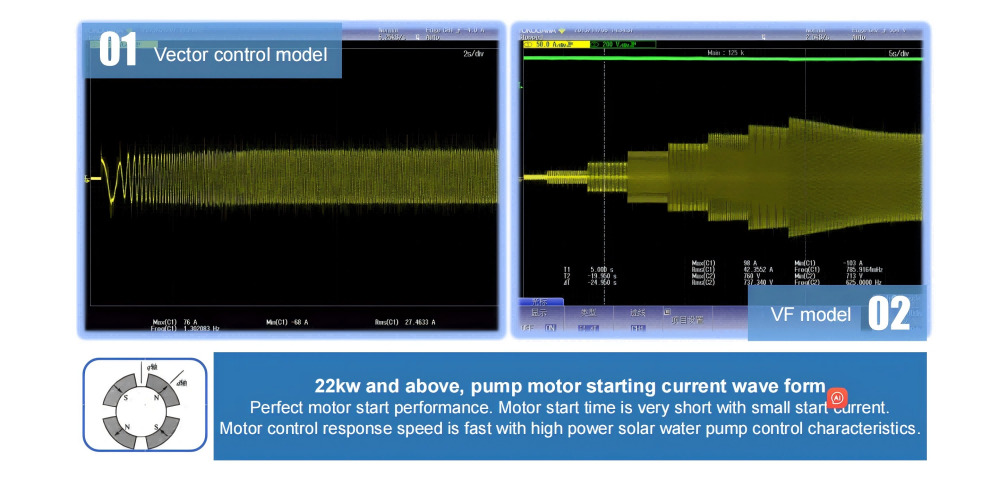

Critical performance index

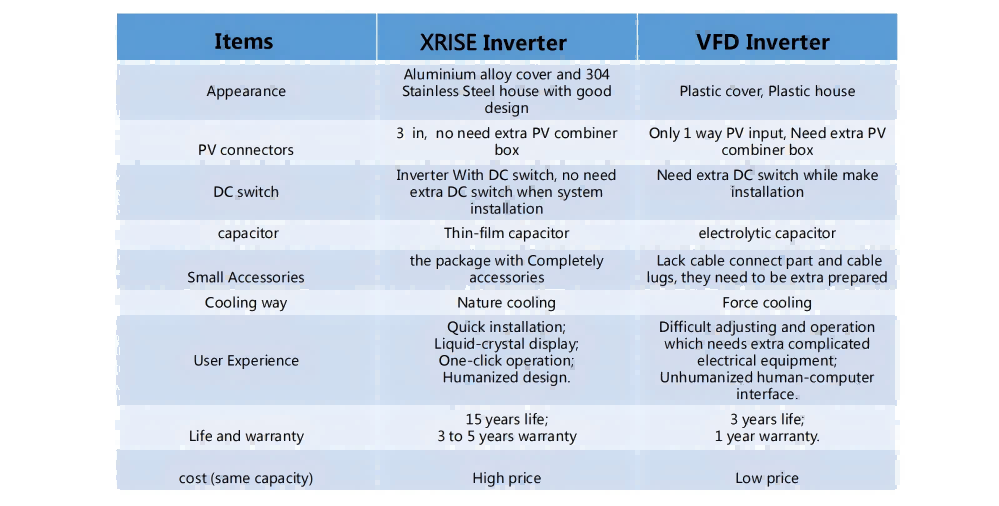

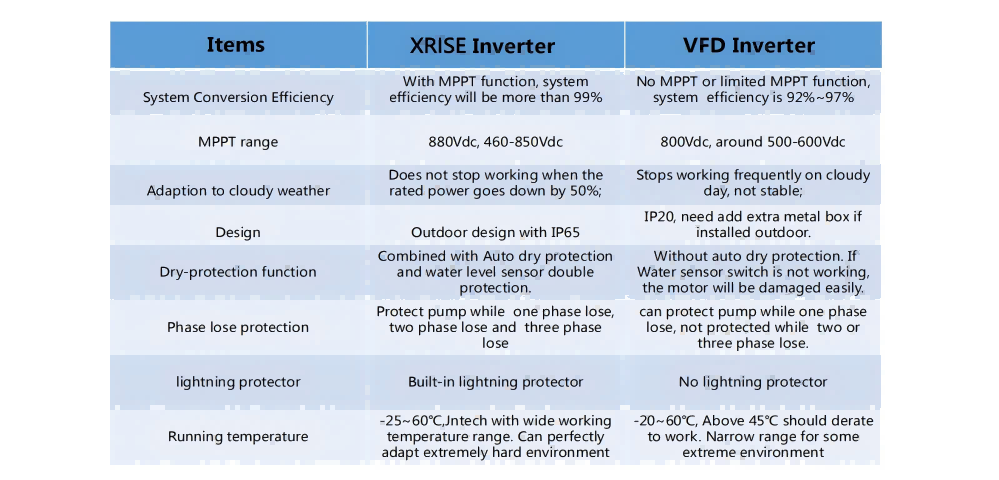

Comparative Analysis: xrise Inverter vs. VFD

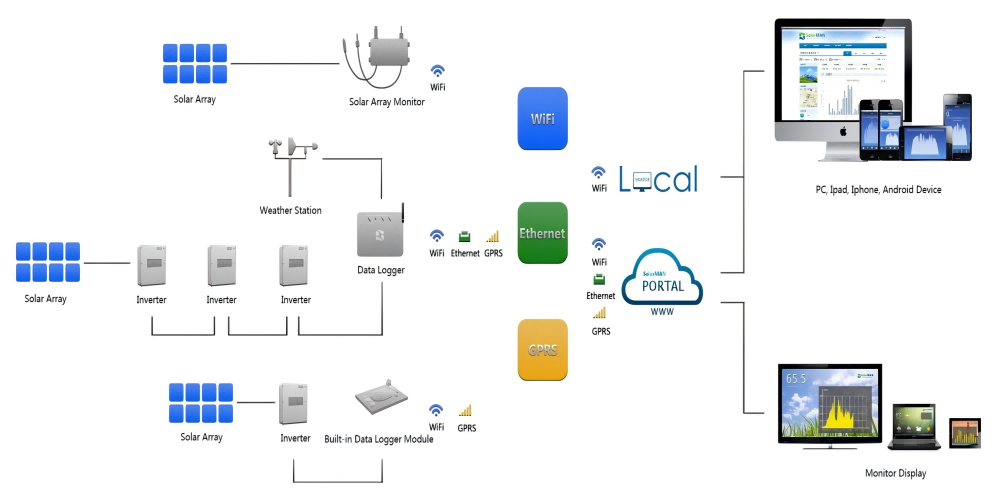

Monitoring Software


Control the solar pump inverter remotely

Manage all solar pump inverters and systems

Check system operating status at any time

Read all system information on PC, tablet, iPhone, iPad or other electronic devices

View alarm records and diagnose error codes

Analyse data to ensure system is in good working condition

The XRISE team has been developing innovative energy products since 2010. We have always put our customers’ needs first, focusing on the quality of our solar pump inverters and providing customer service that’s second to none. Twelve years of hard work have paid off, with a strong global reputa on and our solar pump inverters currently in use in more than 50 countries. XRISE products have passed tests from government engineers, NGOs, UNDP, UNHCR, UNICEF, OCHA,and ICRC in Asia, Africa and the Middle East, and their specifica ons and features have set the standard for solar pumpsystem tenders in these countries.Every member of the XRISE team works hard to reward our customers’ trust and uphold our reputa on. As a company, we never stop looking for new ways to make the world greener.
