System Introduction （AC system）

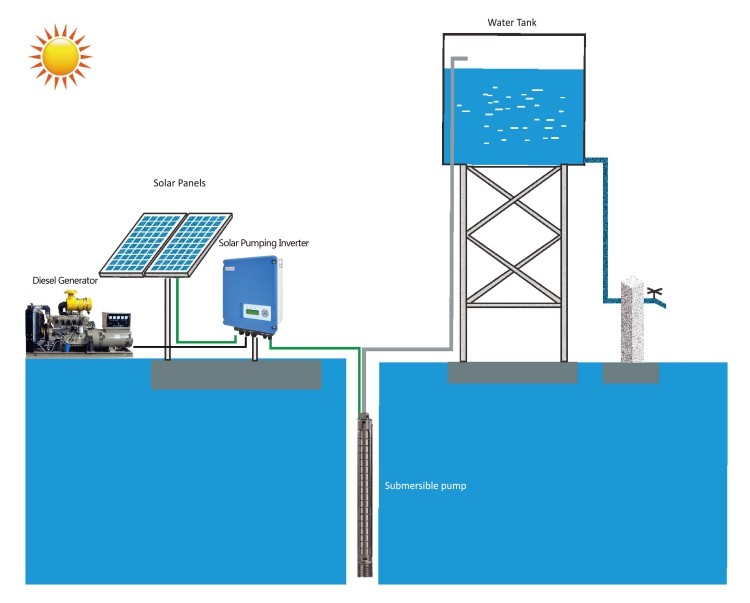

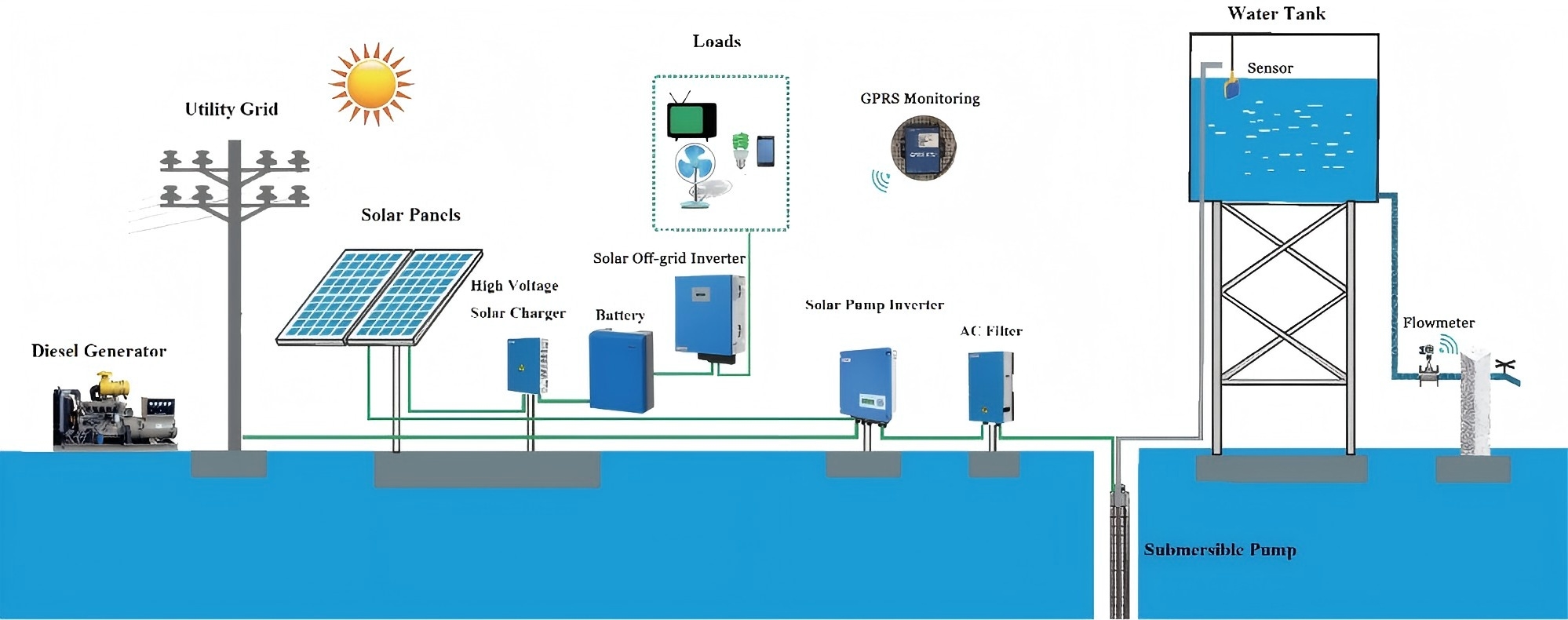

Our hybrid solar pump system consists of four parts: solar panels, solar pumping inverter, three-phase AC pump and water storage device. The solar pump inverter converts DC power produced by solar panels to AC power, which drives the AC pump to extract water from boreholes, rivers, lakes, etc. to the storage device. The inverter applies the high-efficiency MPPT algorithm to maximize power harvested from the solar panels, producing water as energy-efficiently as possible. The solar pump system meets low carbon, energy conservation, and environmental protection demands while improving the standard of living in water-deficient areas.
Sysem Features
Reliable solution for agricultural irrigation, daily water, or desert control in water-deficient areas without electricty
Wide application with all kinds of PV modules and three- and one-phase AC pumps
IP 65 for outdoor application Max. operating temperature of 60℃ / 140℉
GPRS remote monitoring for real-time operation status and on/off control
Excellent performance during cloudy weather, with 5% more water output compared to the competion
ROI of less than 2 years compared to diesel generator
Fully automatic unatiended operation with perfect protection functions for a lifespan of 25 years
2-year warranty for complete system; 10 years for PV modules
Application Scenario
1. Agricultural irrigation
Fields and orchards: Provide irrigation for crops in remote areas, reducing dependence on the power grid.
Greenhouse: Precise control of irrigation to improve water efficiency.
Terraces and slopes: Solving water pumping problems in areas with complex terrain.
2. Animal Husbandry
Drinking water for livestock: Provide stable water sources for animals in grasslands or pastures, such as solar-powered automatic drinking water systems.
3. Water supply in rural and remote areas
Domestic water: Pumping water from Wells, rivers or reservoirs to storage facilities for daily use.
Centralized community water supply: Providing clean drinking water to off-grid villages, such as community projects in Africa.
4. Ecological protection and restoration
Desertification control: pumping water for irrigation in desert areas and supporting afforestation.
Wetland restoration: maintain ecological water level and promote vegetation growth.
5. Emergency relief
Disaster relief: Rapid deployment after an earthquake or flood to provide temporary drinking water.
6. Aquaculture
Water circulation and oxygenation: promote water quality management, suitable for fish ponds or shrimp ponds.
7. Urban and landscape water
Park fountain/Artificial lake: Energy efficient running landscape water circulation system.
Green belt irrigation: Reduce the pressure on the urban power grid, such as greening on both sides of the road.
8. Islands and coastal areas
Desalination: Providing fresh water to isolated islands, combined with reverse osmosis technology.
Groundwater extraction: Solving the problem of shortage of fresh water resources in islands.
9. Public facilities
Water supply for schools/hospitals: Ensuring basic sanitation needs in areas with unstable electricity.
10. Industry and mining
Mine water supply: Provide water for production or dust removal in remote mines.
Sewage treatment: Drive the pump for water treatment or recycling.
System Parts:

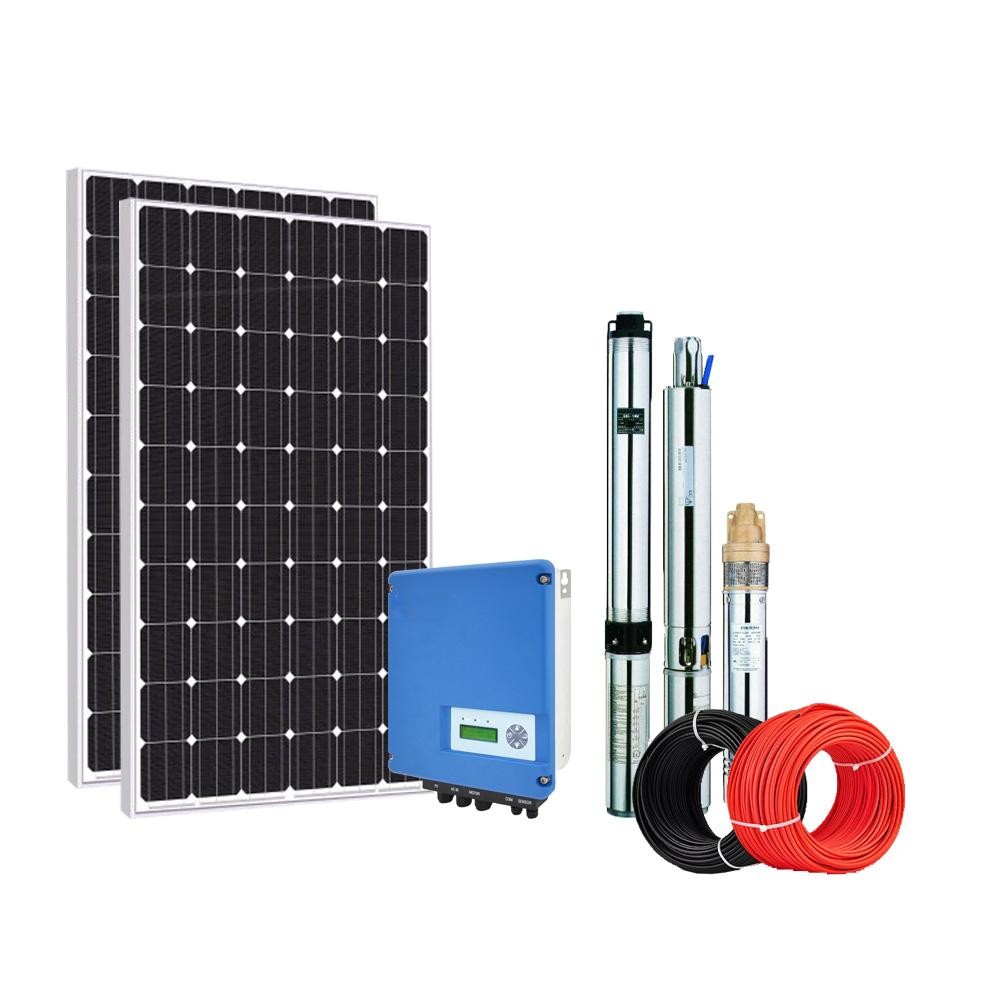

Solar pump system mainly consists of the following components:Solar array (also known as solar cell array) : composed of multiple solar cell modules in series and parallel, absorb solar radiation energy, convert it into electricity, and provide power for the entire system.

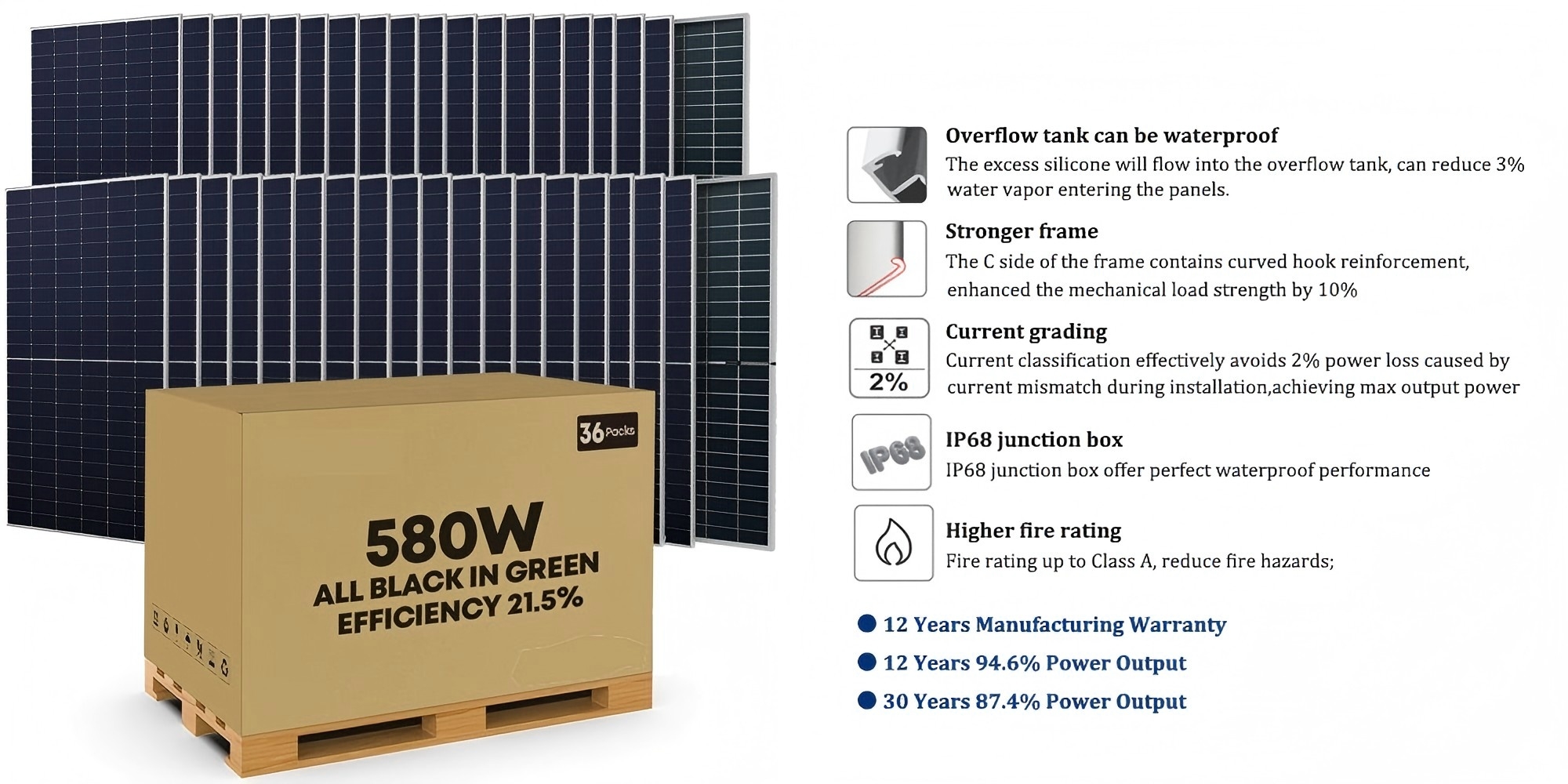

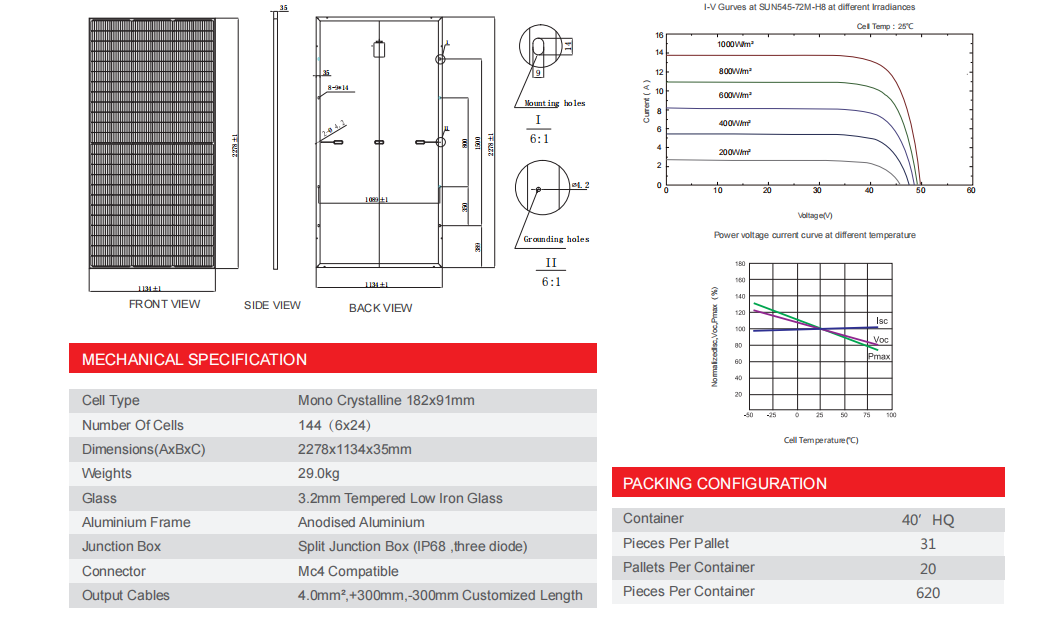

Solar panel:For solar pump system we use Mono-crystalline solar panel,Top-N type 580w solar panel; The solar panel witha stronger frame and overflow tank can be waterproof.The solar panel protection level is IP68 junction box and with higher fire rating! The warranty of solar panel is 12 years and satisfy all clients requirements.

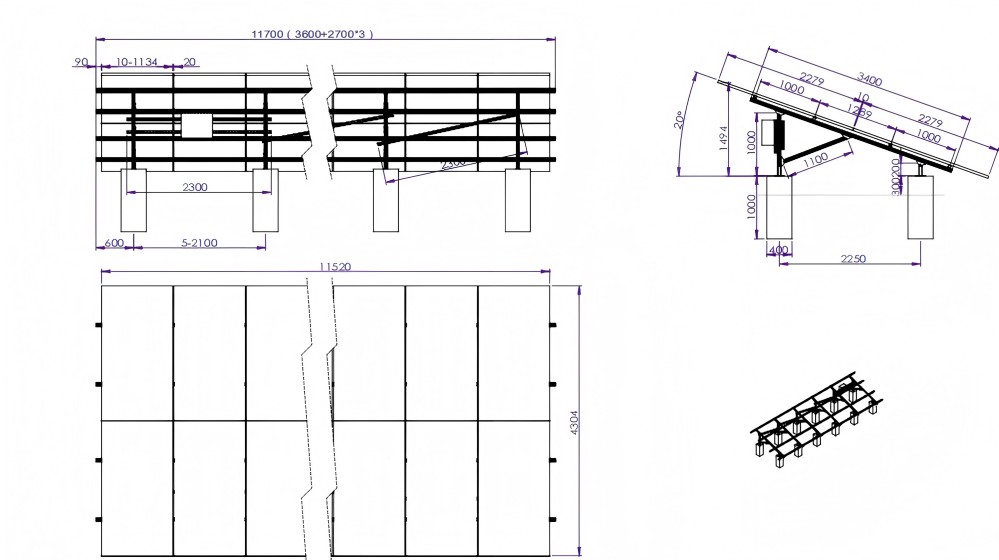

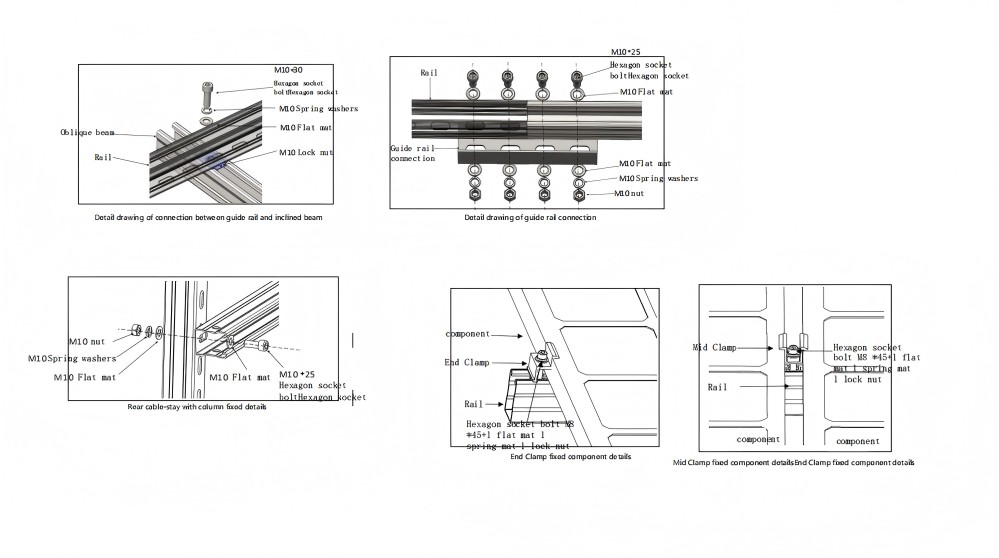

Mounting structure:Solar bracket is a structural system used to fix and support solar photovoltaic modules, its core function is to ensure the stable operation of photovoltaic panels in complex environments, and adjust the best Angle to maximize the absorption efficiency of solar energy; Its core functions are mainly stability support, Angle optimization and adaptation to a variety of environments.
Control system: usually includes a solar pump inverter, which controls and regulates the operation of the system to achieve maximum power point tracking (MPPT). When thesunshine is sufficient, ensure the rated operation of the system, and when the sunshine is insufficient, set the minimum operating frequency to ensure the full application of solar cell power.Solar pump inverter power range from 370w to 350kw so that solar pump inverter can satisfy all clinet requirements!
Motor: used to convert electrical energy into mechanical energy to drive the pump. Common motor types include DC permanent magnet brushless motors and AC asynchronous motors.
Pumps: Take water from deep Wells or water sources such as rivers and lakes, inject it into tanks/ponds, or connect it directly to systems such as irrigation or fountains. Common types are DC pump, AC pump, centrifugal pump, axial flow pump, mixed flow pump, deep well pump and so on.
Warranty Policy:
Solar panel:

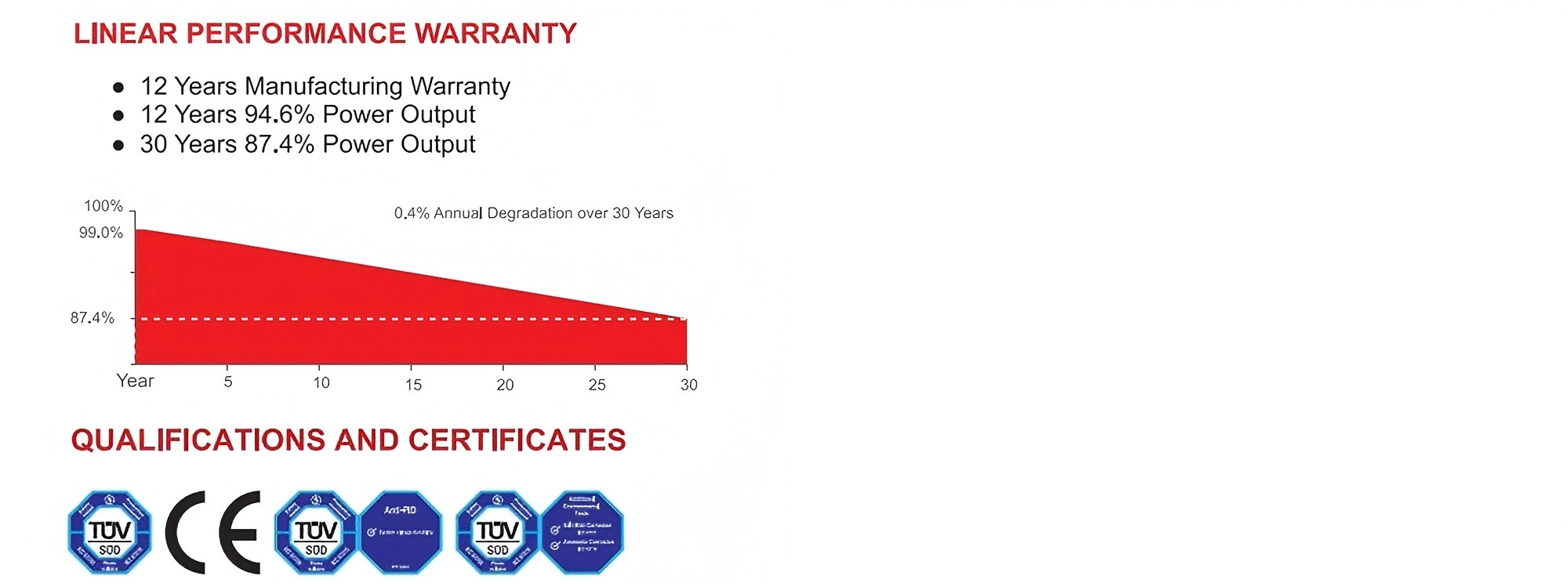

The PV modules will not fail or fail to operate caused by design, materials, process or manufacturing defects for 12 years from the date of delivery.Our company guarantees limited power output loss by 25 or 30 years according to different models of products from the date of delivery,it means,the PV modules’ power output loss, namely pursuant to the rated power PV modules tolerances of the PV modules name plate minimum value and the maximum power of actual PV modules under STC:Within the first 12 years from the delivery date of sale to the customer, the PV modules exhibit a power output of not less than 90.0% of maximum power under STC specified at the time of sale, and within 25years from the date of sale to the customer, the PV modules exhibit a power output of not less than 80.7% of maximum power under STC specified at the time of sale.
Solar pump inverter:
The products supplied by Xrise New Energy Technology Co., Ltd., are warranted against damage or defect in materials and workmanship for a period of 24 months from the date of
Ocean/Airway Bill of Lading with the below mentioned limitation. During the warranty period, Xrise New Energy Technology Co., Ltd.,will either repair or replace products which prove to be defective!
The foregoing warranty shall not apply to the damage or defects caused by the following:
The repair service is charged to the user.
1. Results from improper or inadequate maintenance and misuse by user
2. Operation outside of the environmental specifications of the products
3. Transportation accident or drop after purchase
4. Change of appearance (tear and scratch, etc.)
5. External environmental disasters like fire, pollution, incorrect power supply, flood and earthquake, etc.
6. Consumed maintenance accessories and parts
7. Any other defect not caused by the products design or production failure
8. The warranty is limited by the availability of the spare parts
Water pump:
Declare warranty for deliver 100% of the rated water pumping required at maximum power conditions.Pump start pumping at 50% of' maximum power requirement, and subsequently work in variable speed with variations for power input of 50%, 60%,70%,80%, 90% with maximum results at100% power supply (at solar insolation of 900-1000W/m3) . We guarantee the curve performance of each pump and give warranty of Submersible pump and Submersible motor for (01)Years.
